640*480-C indoor front maintenance P1.86 P2.5 display cabinet

Short Description:

1.Size:640*480*50mm

2.Weight: 4.3kg

3.Module: P2/P2.5/P1.83/P1.667/P1.538/P1.37/P1.25

4.Material: Aluminium alloy

5.Installation: Hoisting,Fixed installation

6.Use of: Indoor

7.Accessory: Fast locks,system/power installation plate,connection piece

8.Door color:Black,silvery


Product Detail

Product Tags

Product information

Related products

PCB Board P2/P2.5/P1.83/P1.667/P1.538/P1.37/P1.25
Flight case 6pcs cabinet in one case,10pcs cabinet in one case
Hinging beam one beam holds 1 pcs cabinet,one beam holds 2 pcs cabinet
Power supply 200W-5v40a
Power and data connector 20A 3*2.5Nation standard



Feature of product



1.Fast cooling—excellent heat dissipation performance to protect the modular circuit

2..Anti-interference—special anti electromagnetic interference function

3.Ultra-light,Ultra-thin

4.High precision and flatness,it is through CNC machining,the flatness tolerance of 0.03mm

5.Easy to maintain—cabinet can be removed from steel structure in front

6.High universality,can be processed according to module drawing,used for outdoor and indoor

7.Easy installation—Installation takes only 20 seconds

8.The adhesive force of surface reaches the professional standard

9.High cost-effective—large-scale production,complete production&supply chain





UDA Series Products Fixed Indoor Installation
Contain Novastar receiving card, power supply, flat cable and power cord
Product

P1.538

P1.25

P1.667

P1.839

P2

P2.5

P3.076

Pixel Pitch

1.538

1.25

1.667

1.839

2

2.5

3.076

LED Type

SMD1212

SMD1010

SMD1212

SMD1515

SMD2121

Module Size

320x160x16.5

320*160*14

Module weight

0.48kg/pcs

Module resolution

208*104

256*128

192*96

174*87

160*80

128*64

104*52

Brightness

500Nits

600Nits

Scaning

52s

64s

64s

58s

40s

32s

26s

Refresh Rate

3840Hz

Cabinet Size

640m*480mm*52mm

Cabinet Weight

7.8kg/panel

Cabinet Maintenance

100%Front Service

Cabinet Material

Die casting Aluminum

Protection Level

IP30

Color Temperature

2000~9300k adjustable

Viewing Angle

H140°/H140°

H160°/H140°

Power Requirement

AC92~132V/AC186~264V,Frequency 47~63(Hz)

Frame Changefrequency

50Hz & 60Hz

Gray level 16384
Working temperatureWorking humidity -20℃–50/ 10%-65%RH (no condensation)
Typical service life (hrs) 100,000H
applied code EMC/CE/ROHS/CCC/FCC/ISO

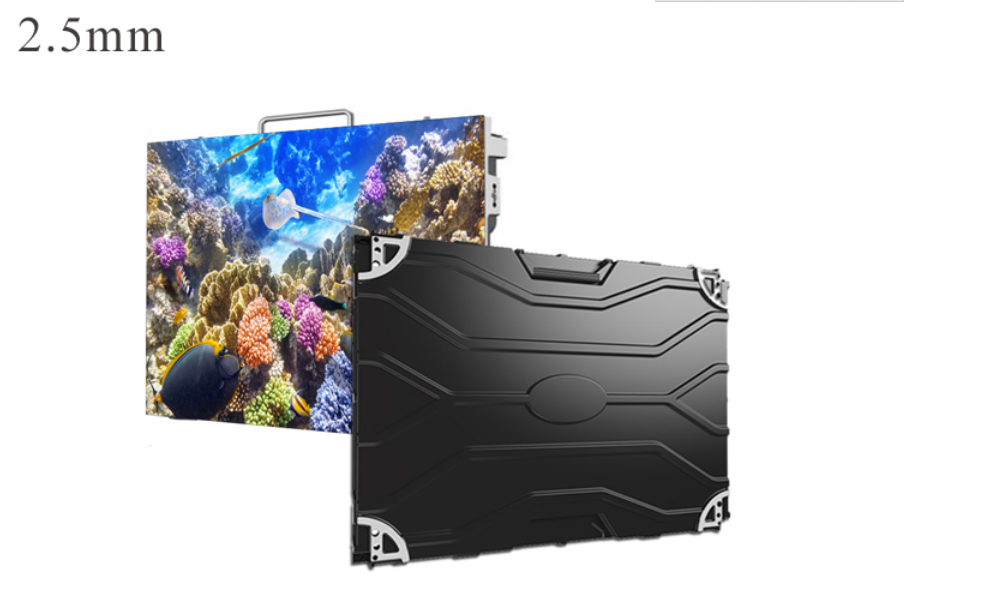

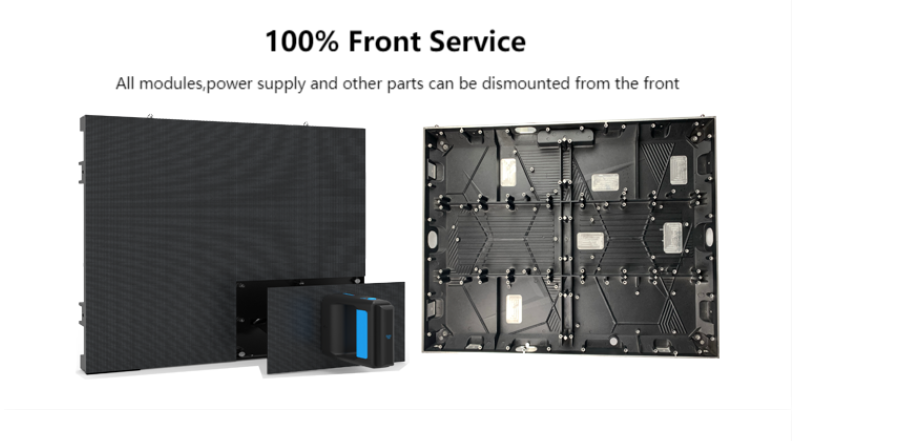

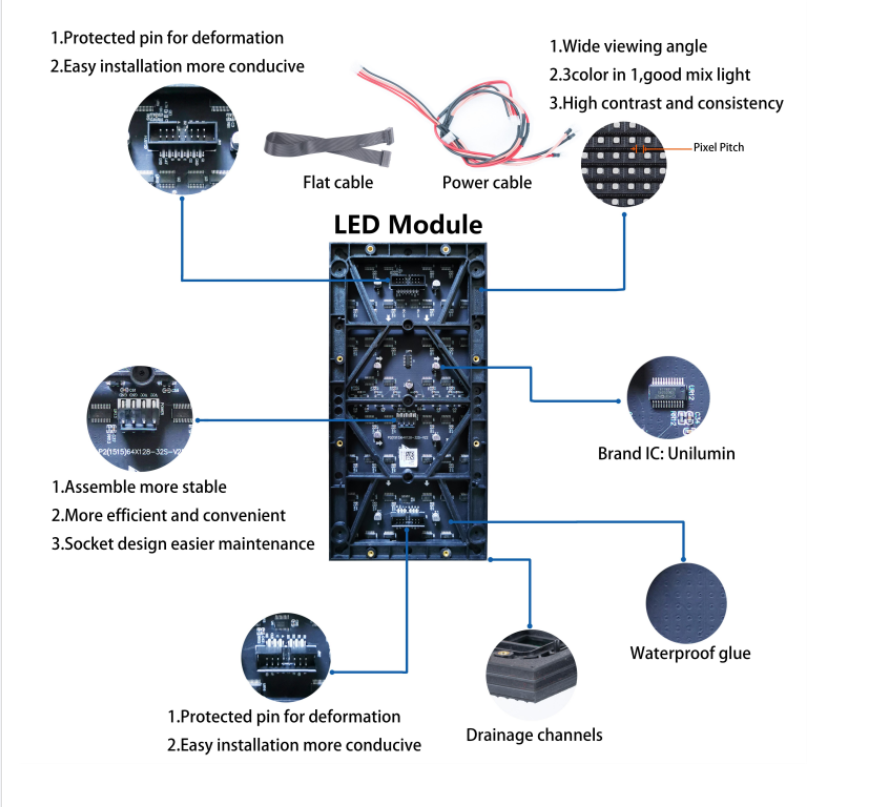

8d9b88ca736be725a59a1fe7418958a 19cbbaac420a259c0ae379c2c02581c f248925c5aa7976eeb5d5b9970749ec

Customer’s Review

微信图片_20210906151742

Packaging & Delivery

There are mainly three types of packing way:

20210817144141

Delivery way

1. By sea:Maritime transportation is a way of transporting goods between ports in different countries and regions by sea lanes, and it is the most important mode of transportation in international trade.

sea

2. By air:Air transport has won a considerable market with its fast, safe, punctual and super-high efficiency, greatly shortening the delivery time, and greatly promoting the logistics supply chain to speed up the capital turnover and circulation.

air

3.By express: TNT/UPS/DHL/FEDEX,It is more convenient and quick,It is mainly used for transporting goods with small volume and light weight.

interExpress

Shipping port:shenzhen /guangzhou/tianjin port.

Shipping term:EXW term、FOB term、CIF term

Payment types: T/T transfer,Weston union
