OEM/ODM China Led Display Promotion - 512*512 aluminium rental indoor cabinet P4 P8 256*128 module – Ruichen Detail:
Product information
|
Related products |
|
| PCB Board | P4mm/P8mm |
| Flight case | 8pcs cabinet in one case,6pcs cabinet in one case |
| Hinging beam | one beam holds 1 pcs cabinet,one beam holds 2 pcs cabinet |
| Power supply | 300W-5v60a |
| Power and data connector | 20A 3*2.5㎡ Nation standard |
|
Feature of product |
|
1.Fast cooling—excellent heat dissipation performance to protect the modular circuit 2..Anti-interference—special anti electromagnetic interference function 3.Ultra-light,Ultra-thin 4.High precision and flatness,it is through CNC machining,the flatness tolerance of 0.03mm 5.High universality,can be processed according to module drawing,used for outdoor and indoor 6.Easy installation—Installation takes only 20 seconds 7.The adhesive force of surface reaches the professional standard 8.High cost-effective—large-scale production,complete production&supply chain
|

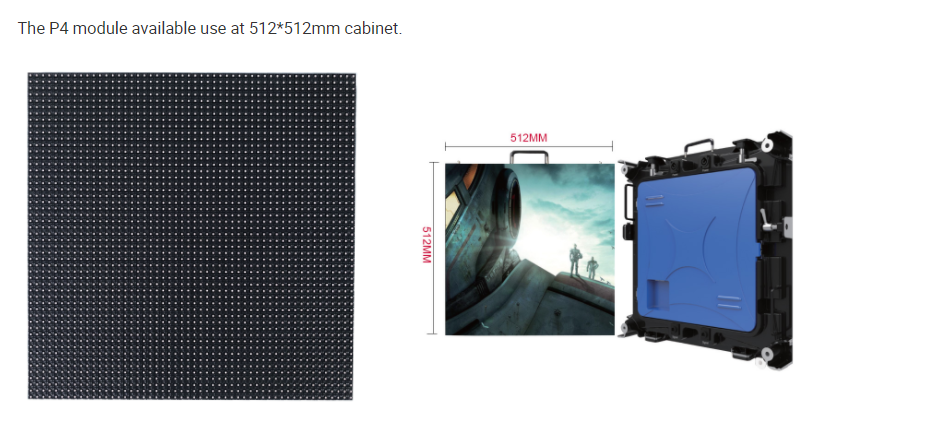

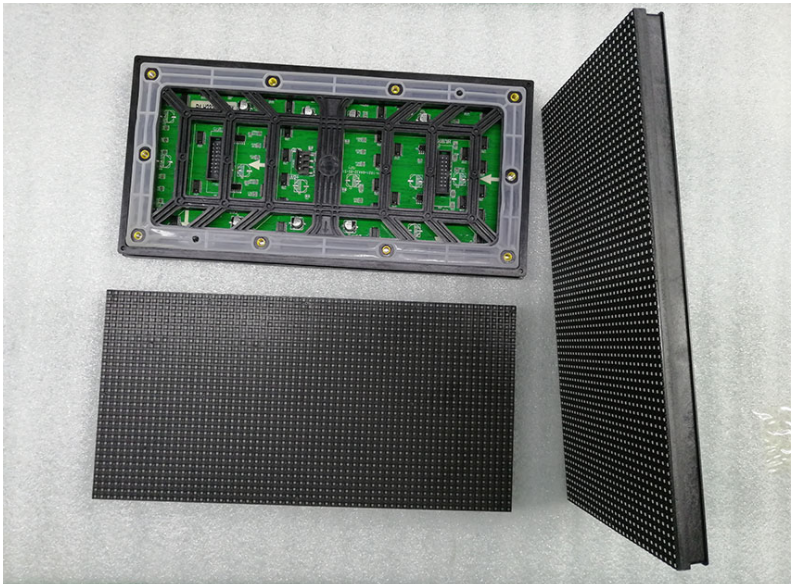

| P4 outdoor 256*128mm full color LED module | |||
| Module Number | P4 | Pixel Pitch | 4mm |
| LED Encapsulation | SMD1921 | Pixel Density | 62500dot/㎡ |
| Module Size | 256*128mm | Pixel Configuration | 3 IN 1 |
| Module Resolution | 64*32pixel | Drive Method | 1/8Scan |
| Cabinet Size | 512*512mm | Brightness | ≥6500cd/㎡ |
| Cabinet Resolution | 128*128pixel | Gray Scan | ≥4096 |
| Viewing Angle | 140/140 | Lifespan | 100000hours |
| Working Voltage | DC5V | Warranty | 3 years |
Packaging & Delivery
There are mainly three types of packing way:
Delivery way
1. By sea:Maritime transportation is a way of transporting goods between ports in different countries and regions by sea lanes, and it is the most important mode of transportation in international trade.
2. By air:Air transport has won a considerable market with its fast, safe, punctual and super-high efficiency, greatly shortening the delivery time, and greatly promoting the logistics supply chain to speed up the capital turnover and circulation.
3.By express: TNT/UPS/DHL/FEDEX,It is more convenient and quick,It is mainly used for transporting goods with small volume and light weight.
Shipping port:shenzhen /guangzhou/tianjin port.
Shipping term:EXW term、FOB term、CIF term
Payment types: T/T transfer，Weston union
Product detail pictures:
