960*960-A LED stadium empty cabinet magnesium alloy die case

Short Description:

1.Size:960*960*84mm

2.Weight:15.4kg

3.Module: P5/P6.67/P8/P10/P13.33

4.Material: Aluminium+magnesium alloy

5.Installation:Fixed installation,rental

6.Use of: Indoor IP30 and outdoor Ip65

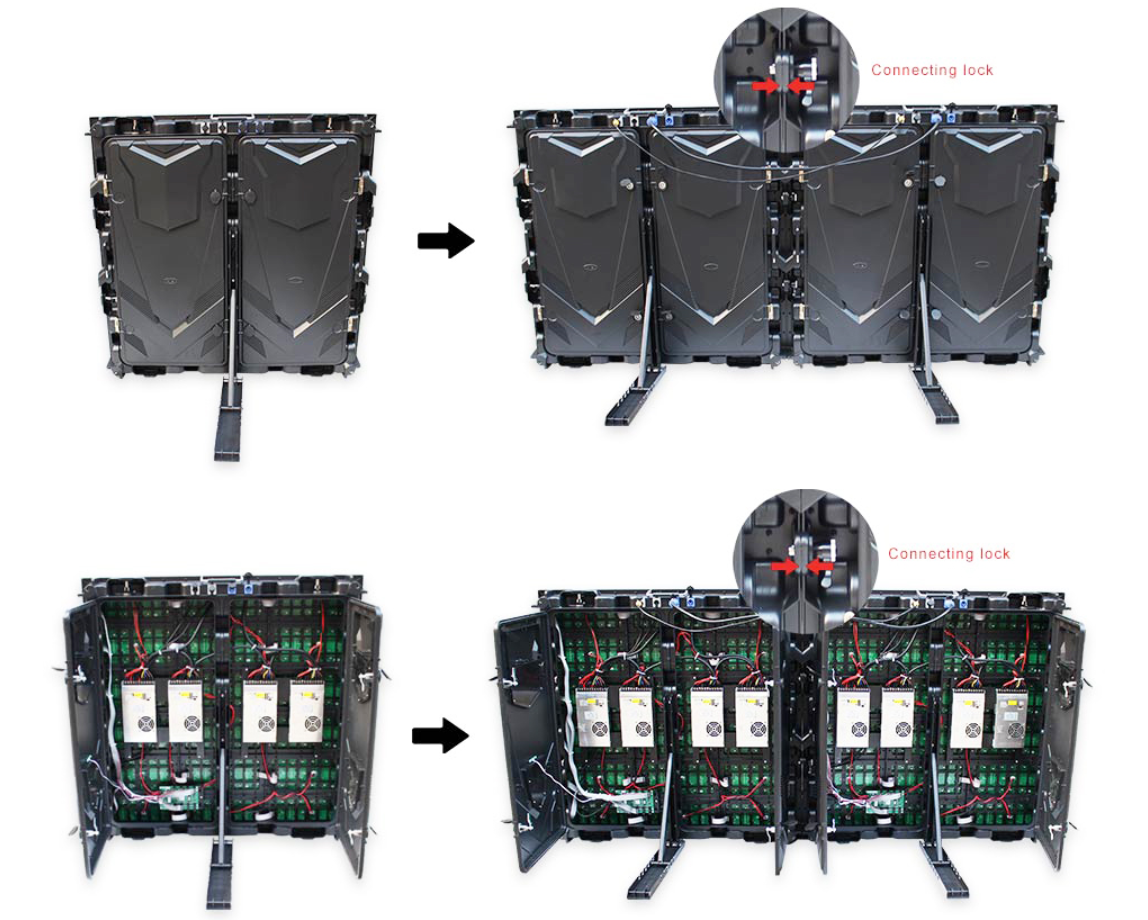

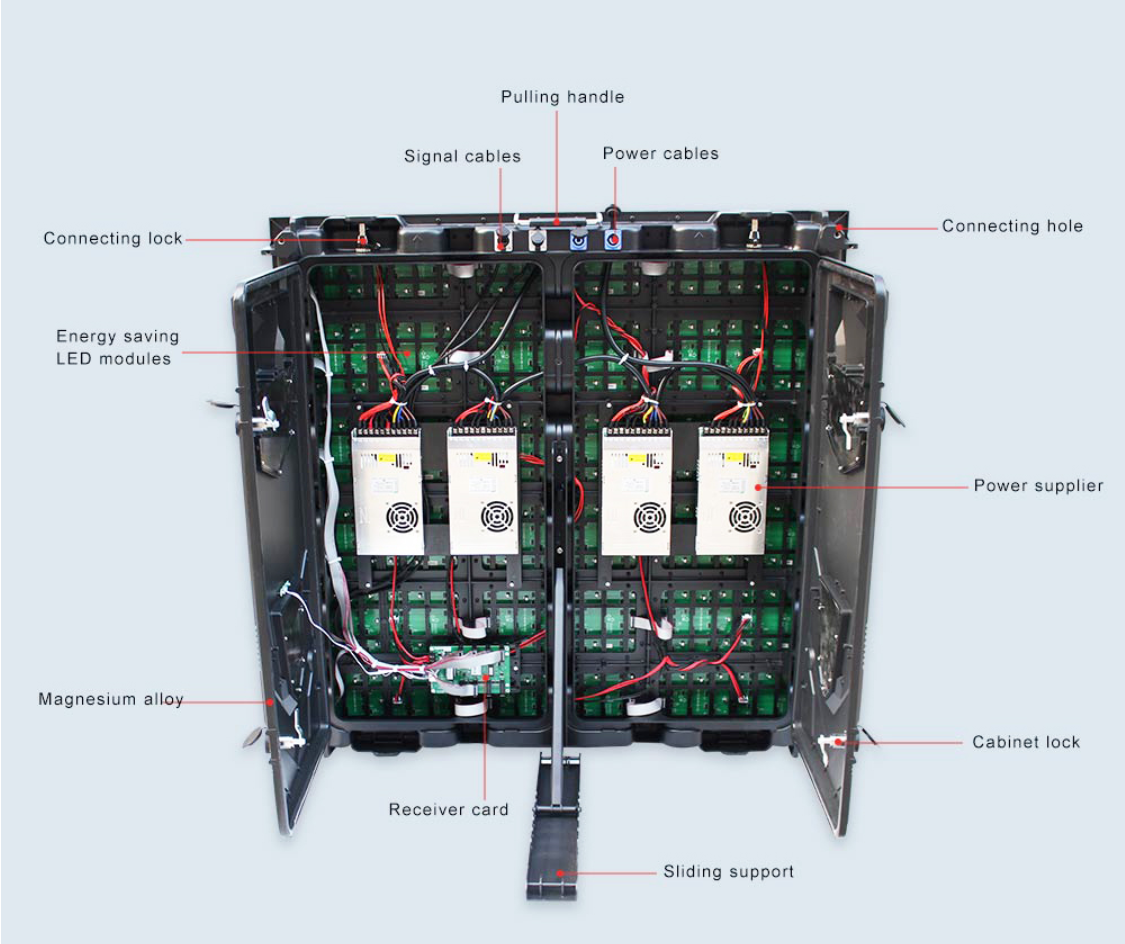

7.Accessory:Fast locks,system/power installation plate,connection piece、Anti-collision cotton,Bracket

8.Door color:Black,silvery,blue,gold,orange

9.Module size:320*160mm


Product Detail

Product Tags

Product information

Related products

PCB Board P5/P6.67/P8/P10/P13.33
Flight case 3pcs cabinet in one case,4pcs cabinet in one case

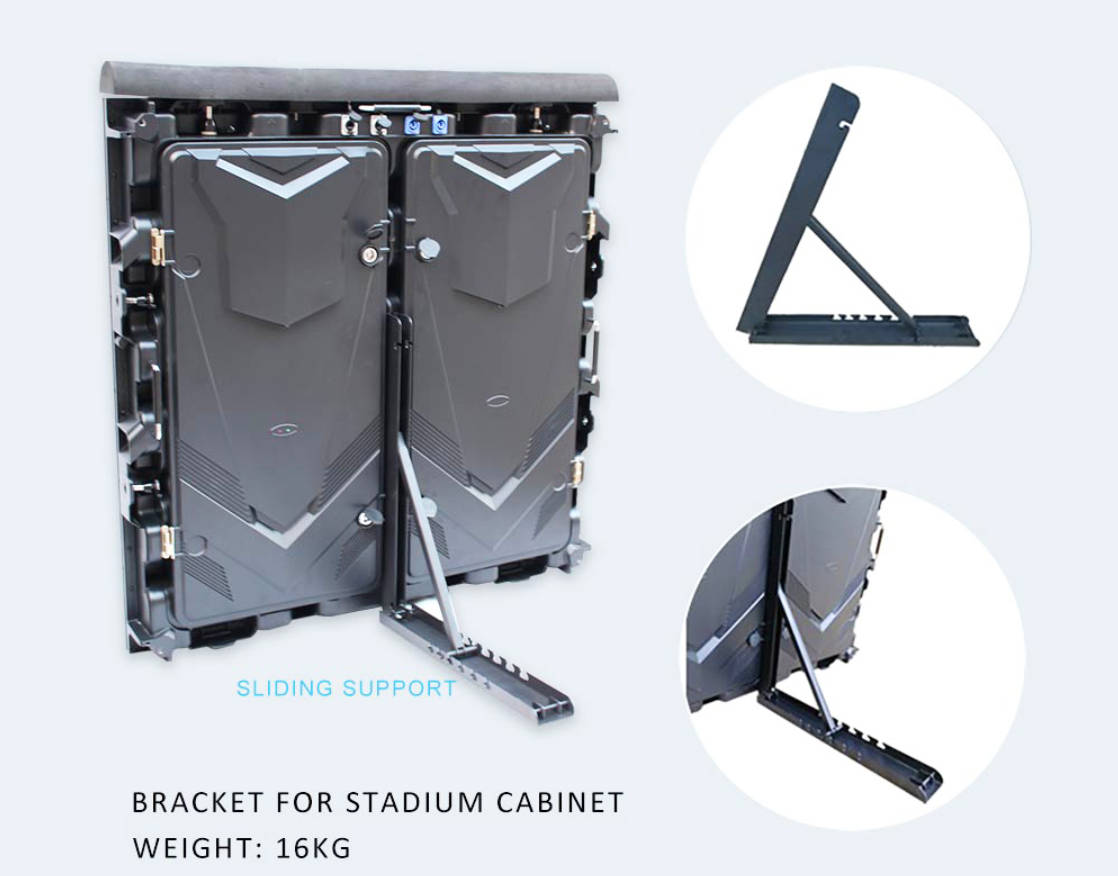

Hinging beam one beam holds 1 pcs cabinet
Power supply 300W-5v60a

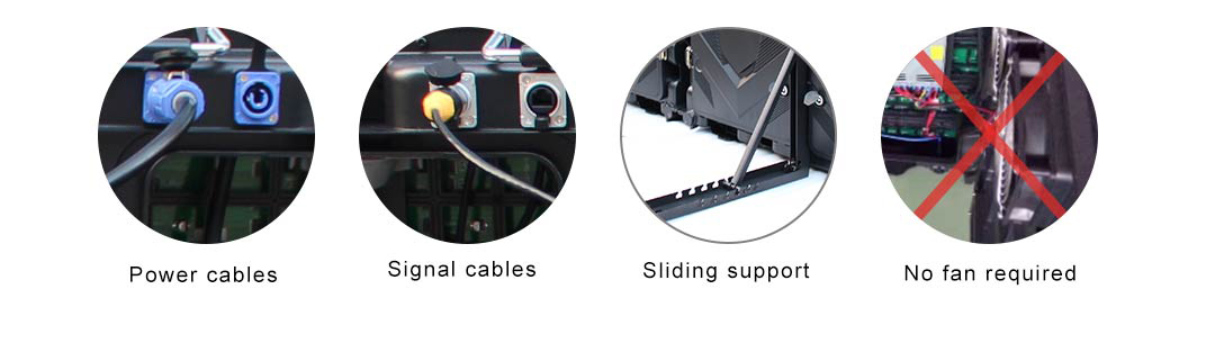

Power and data connector 20A 3*2.5Nation standard
Fans 220V/5V , fans size :120*120*25mm



Feature of product



1.The assemble structure is convenient and easy

2.The appearance design is elegant and decent

3.Ultra-light,Ultra-thin

4.High precision and flatness,it is through CNC machining,the flatness tolerance of 0.03mm

5.High strength,durability,great heat dissipation

6.High universality,can be processed according to module drawing,used for outdoor and indoor

7.It is through salt &fog testing for 48 hours

8.The adhesive force of surface reaches the professional standard



Specifications

960mm*960mm Stadium Led Display

Item 960mm*960mm Stadium Led Display
Model Number 320mm*160mm
Cabinet Size 960mm*960mm
Pixel Pitch P5 P6.67 P8 P10
Pixels Density 40000 dots/m²
Pixel Configuration 1R1G1B
Package Mode SMD2727
Pixel Resolution 64dots(W)*32dots(H)
Drive Type Constant drive
Scan Mode 1/8 scan
Port Type HUB75
Brightness of White 7500cd/m²
IP rate IP65/IP54
Input Voltage AC220V/110V,50HZ/60HZ (±10%)
Output Voltage 5V,60A
Best Viewing Distance 10m
Refresh rate 1920HZ
Grey scale levels R(256bit) x G(256bit) x B(256bit)
Display Colors R(1024) x G(1024) x B(1024)
Working Temperature -20~50/10~90%RH
Malfunction dot rate < 0.0001
Life-span 100,000 hours
Warranty 2 years
Cabinet weight 26kg
Package Flight Case(3in1) size
120*56*115cm; Gross weight 155kg



1bc4be04a867ba1c8931a61fe22149a 5c8ed310c3f91818e13dbef3f87275a 6ca43274a0c6542168a0eda963f0bcb 031a5bc35f2c8cf9ca6a21f40a34c3b 36b023d4156dd4b73f00a442ac72724 56b27cadcf4deed5c5ebad15728b908 82010cf6cac4f7d40b21cfced493e53



Packaging & Delivery

There are mainly three types of packing way:

20210817144141

Delivery way

1. By sea:Maritime transportation is a way of transporting goods between ports in different countries and regions by sea lanes, and it is the most important mode of transportation in international trade.

sea

2. By air:Air transport has won a considerable market with its fast, safe, punctual and super-high efficiency, greatly shortening the delivery time, and greatly promoting the logistics supply chain to speed up the capital turnover and circulation.

air

3.By express: TNT/UPS/DHL/FEDEX,It is more convenient and quick,It is mainly used for transporting goods with small volume and light weight.

interExpress

Shipping port:shenzhen /guangzhou/tianjin port.

Shipping term:EXW term、FOB term、CIF term

Payment types: T/T transfer,Weston union
