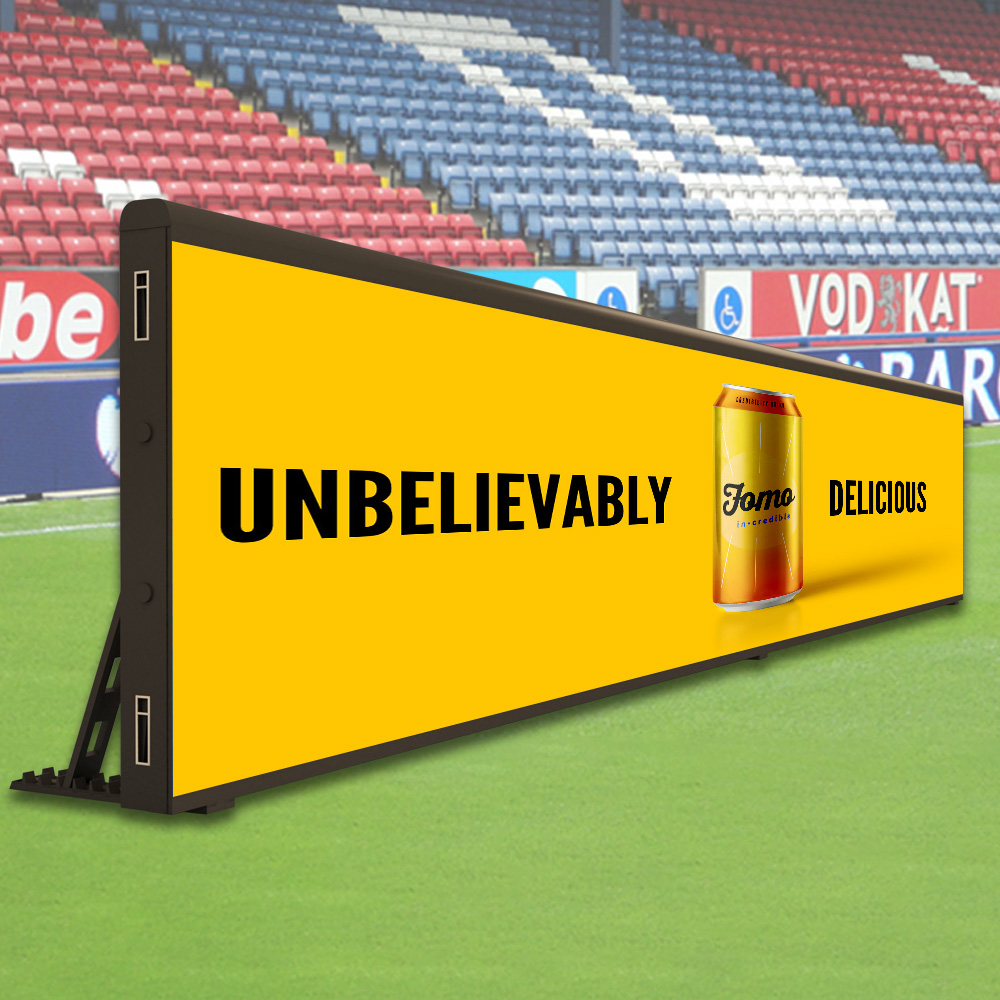

960×960 iron stadium outdoor P5 P8 P10 led display screen cabinet

Short Description:

1.Name: LED display stadium cabinet

2.Size :960*960mm*120mm

3.Module Size: 320*160mm 192*192mm 320*320mm

4.Weight: 22Kg

5. Color: black, blue

6.Installation way :fixed installation

7.Use Environment: outdoor

8.Accessory: fast lock, handle, power plate, received plate, connect plate,Anti-collision cotton,Bracket

Product Detail

Product Tags

Product information

Related products

PCB Board P10mm/P 5mm/P 6.67mm/P8mm
Flight case 3pcs cabinet in one case,4pcs cabinet in one case
Hinging beam one beam holds 1 pcs cabinet
Power supply 300W-5v60a
Power and data connector 20A 3*2.5㎡ Nation standard
Fans 220V/5V , fans size :120*120*25mm


Feature of product


1.Public mould cabinet,easy to purchase compatible module

2.Waterproof grade IP65

3.Magnesium alloy material,ultra light weight

4.High precision and flatness,it is through CNC machining,the flatness tolerance of 0.03mm

5.Fast and convenient installation ,reduce time and labour

6.High universality,can be processed according to module drawing,used for outdoor and indoor

7.Can use for fixed installation,rental and stadium cabinet

8.The adhesive force of surface reaches the professional standard

9.New type of doors,can both use the doors and fans for heat dissipation



Module Specification
Pitch 4mm 10mm
Size 320mm(H)x160mm(W) 320mm(H)x160mm(W)
Module Resolution 80(H)x40(V) 32(H)x16(V)
Density 62500pixels/m2 10000pixels/m2
LED Lamps SMD1919 SMD3525
Driver IC Customizable Customizable
Driver Mode 1/10 Scan 1/2 Scan
Modules Refresh 1920hz-3840hz 960hz-3840hz
Electricity Parameter
Brightness 5500-6500cd/m2 6000-7500cd/m2
View Angle 140 degree ( horizontal) 140degree(vertical) 140 degree ( horizontal) 140degree(vertical)
View Distance 4m-250m 10m-250m
Gray Scale 65536 65536
Display Color 3-in-1 RGB 3-in-1 RGB
Power Supply
Operation Power AC100-240V 50-60HZ Switch-able AC100-240V 50-60HZ Switch-able
Maxim Power Consumption 1600 w/m2 1600 w/m2
Average Power Consumption 800 w/m2 800 w/m2
Temperature Storage -10~60 -10~60
Humidity Storage 10~90% 10~90%
Operating Life >100,000 hours >100,000 hours
MTBF >10,000 hours >10,000 hours
Continuous Working Time >48 hours >48 hours
Protection Level IP65 IP65
Out of Control Pixel Rate <0.03% <0.03%

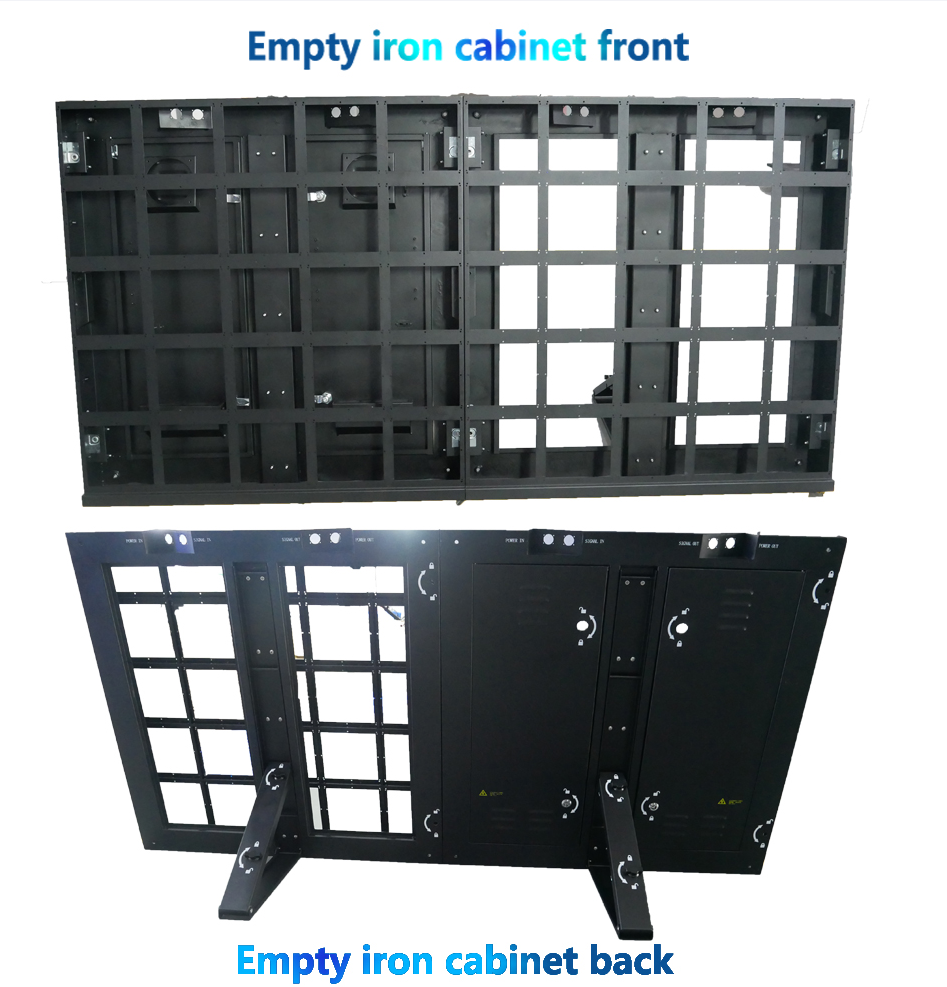

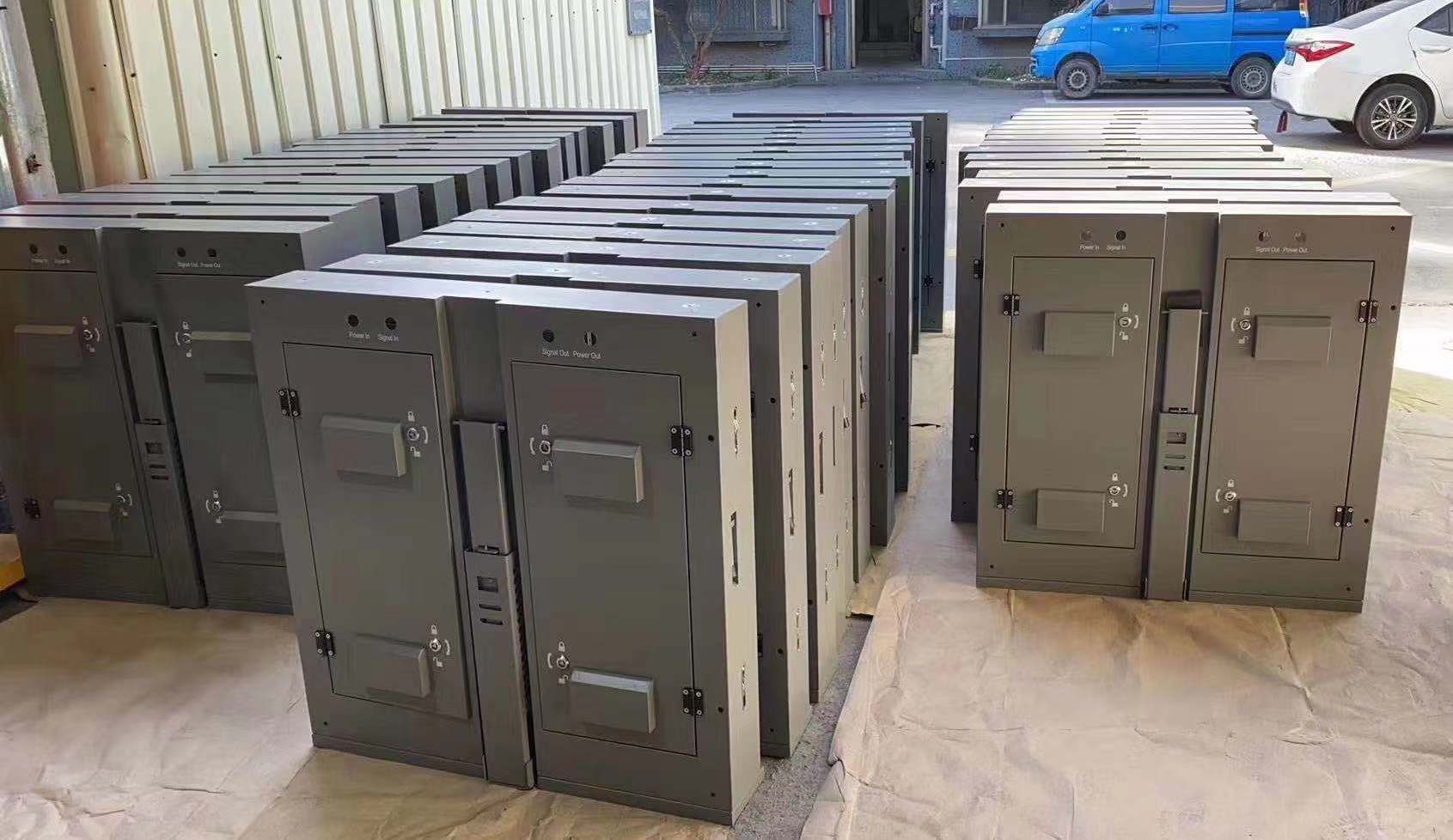

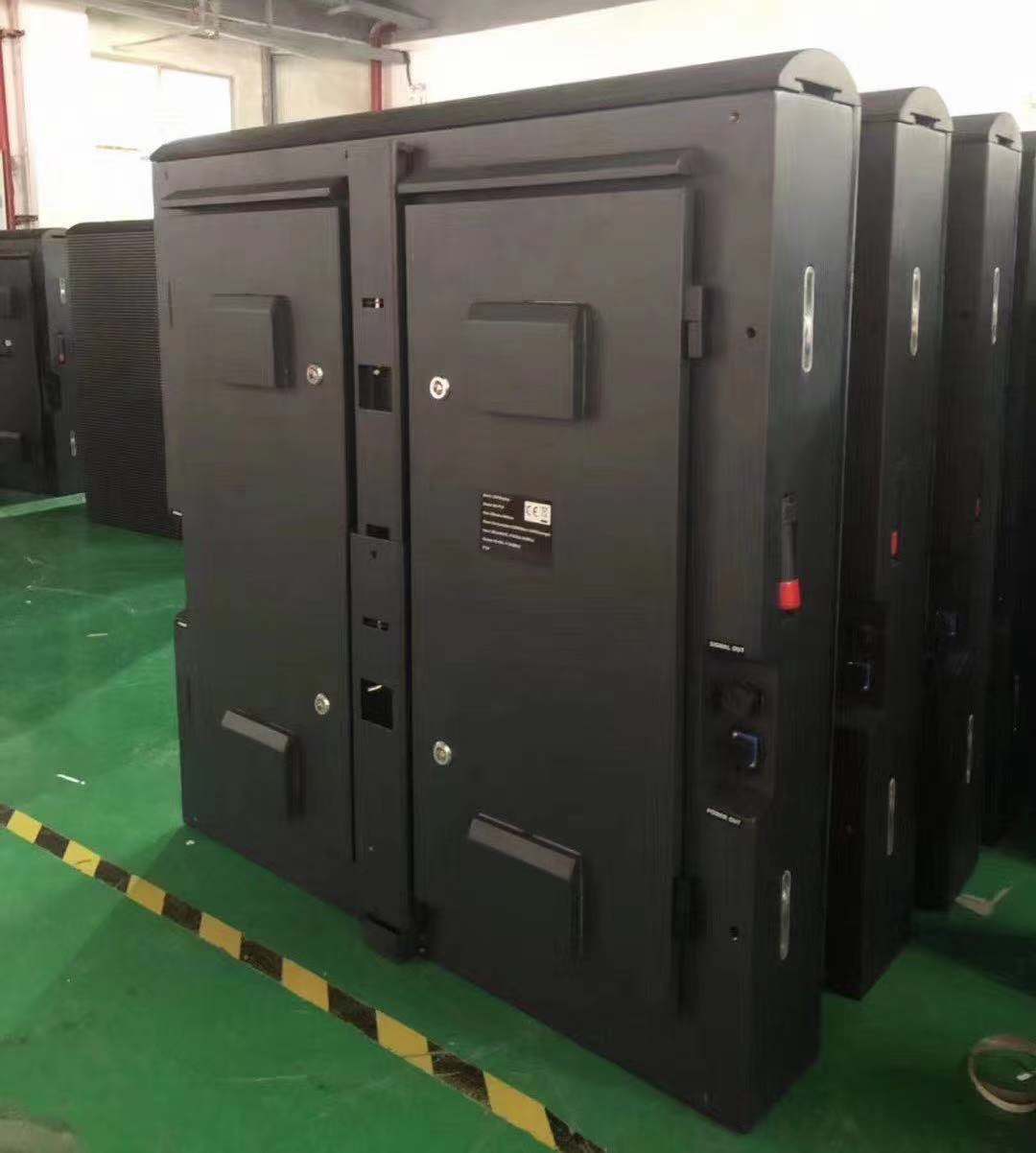

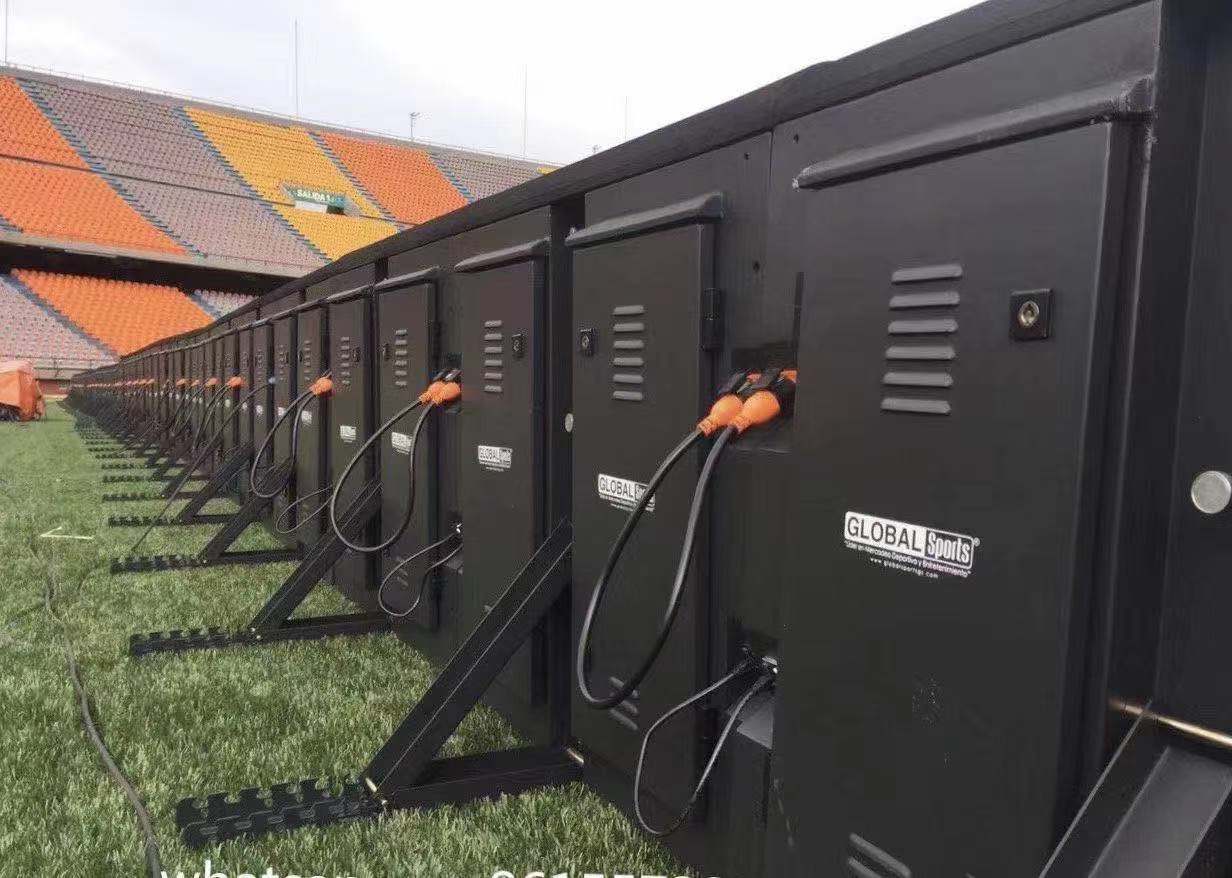

8f8317c8dd9ea93d3b1dba372d3b510 18b12cbfd4ae5552122670a1c1e02bb a7d17a9a1103f58feba4ccf138a4f49 628d8be25f801523fd6d05656ef4a22 643b86e7699a276d41725a246cc04bd

Packaging & Delivery

There are mainly three types of packing way:


Delivery way

1. By sea:Maritime transportation is a way of transporting goods between ports in different countries and regions by sea lanes, and it is the most important mode of transportation in international trade.


2. By air:Air transport has won a considerable market with its fast, safe, punctual and super-high efficiency, greatly shortening the delivery time, and greatly promoting the logistics supply chain to speed up the capital turnover and circulation.


3.By express: TNT/UPS/DHL/FEDEX,It is more convenient and quick,It is mainly used for transporting goods with small volume and light weight.


Shipping port:shenzhen /guangzhou/tianjin port.

Shipping term:EXW term、FOB term、CIF term

Payment types: T/T transfer,Weston union
