320*480 aluminium front maintenance P1.8 P2.5 display cabinet

Short Description:

1.Size:320*480*48mm

2.Module: P2.5, P2, P1.8, P1.667, P1.5, P1.37, P1.25, P1

3.Maintenance method: Pre-maintenance

4.Material: Aluminium alloy

5.Installation: Hoisting,Fixed installation

6.Use of: Indoor

7.Accessory: Screw lock, power tablet and connect plate

8.Cabinet color: Black

9.Door color:Black

10.Versatility: Suitable for regular size system card and regular power supply, double backup, can be hardwired


Product Detail

Product Tags

Product information

Related products
PCB Board P2.5, P2, P1.8, P1.667, P1.5, P1.37, P1.25, P1
Flight case 6pcs cabinet in one case,8pcs cabinet in one case
Hinging beam one beam holds 1 pcs cabinet,one beam holds 2 pcs cabinet
Power supply 200W-5v40a,300W-5v60a
Power and data connector 20A 3*2.5㎡ Nation standard



Feature of product



1.The assemble structure is convenient and easy

2.The appearance design is elegant and decent

3.Ultra-light,Ultra-thin

4.High precision and flatness,it is through CNC machining,the flatness tolerance of 0.03mm

5.High strength,durability,great heat dissipation

6.High universality,can be processed according to module drawing,used for outdoor and indoor

7.It is through salt &fog testing for 48 hours

8.The adhesive force of surface reaches the professional standard

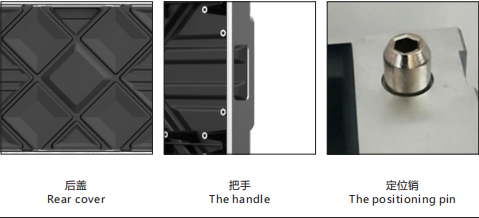

Cabinet details

cabinet-details-640x480-B

Cabinet accessory

 微信图片_20220507100704



Pixel Pitch 2.5mm
Pixel configuration 1R1G1B
Module size 320x160mm
Module resolution 128x64pixel
Pixel density 160,000 pixels/sq.m.
Brightness 900nits
Cabinet size 320x480mm
Cabinet resolution 256x192pixel
Panel material aluminum
Refresh rate 3840HZ
Power consumption (max/avg) 850/350 (W/sq.m.)
Colors 16.7milion
Gray scale per color 65536 level
Viewing angle (H/V) 140/140 (deg)
IP rating (Front/Rear) IP43
Input voltage (AC) 110V ~ 240V
Operating temperature -20℃ ~+ 50℃
Operating humidity 10% ~ 90%
MTBF 10,000hours
Life Time 100,000hours

Packaging & Delivery

There are mainly three types of packing way:

20210817144141

Delivery way

1. By sea:Maritime transportation is a way of transporting goods between ports in different countries and regions by sea lanes, and it is the most important mode of transportation in international trade.

sea

2. By air:Air transport has won a considerable market with its fast, safe, punctual and super-high efficiency, greatly shortening the delivery time, and greatly promoting the logistics supply chain to speed up the capital turnover and circulation.

air

3.By express: TNT/UPS/DHL/FEDEX,It is more convenient and quick,It is mainly used for transporting goods with small volume and light weight.

interExpress

Shipping port:shenzhen /guangzhou/tianjin port.

Shipping term:EXW term、FOB term、CIF term

Payment types: T/T transfer,Weston union
