960*960-A IP65 waterproof P10 P8 P5 LED display iron cabinet

Short Description:

1.Size :960*960mm*120mm

2.Module Size: 320*160mm 192*192mm

3.Weight: 18Kg

4.Color: black, blue

5.Installation way :fixed installation

6.Use Environment: outdoor

7.Accessory: fast lock, handle, power plate, received plate, connect plate.


Product Detail

Product Tags

Product information

Place of Origin Shenzhen,Guangdong, China
Model size 960*960*145mm
Brand Name RUICHEN
Tube Chip Color Full color
Display Function Video
Usage outdoor
Pixels P10mm/P 5mm/P 6.67mm/P8mm
Screen Dimension Custom Made
Module size 320*160 mm,192*192mm
Color black, blue, gray,white
Certificate ISO9001,CE
Application Advertising



Name

LED display waterproof cabinet

Material

Iron

Aluminium

Cabinet size

0.6

0.6

0.6

0.6

Plate thickness

1.0mm

1.2mm

1.0mm

1.2mm

1.5mm

1.8mm

1.5mm

1.8mm

Standard accessory

Power supply plate,received card plate,position pin,connector plate

Specification

960*960 Outdoor series

ITEM UNIT Outdoor-4 Outdoor-5 Outdoor-6.667 Outdoor-8 Outdoor-10
Pixel Pitch Mm 4 5 6.667 8 10
Pixel Matrix Per Pixel/sqm 62500 62500 22500 15625 10000
Pixel Configuration N/A SMD1921/1820 SMD1921/2525 SMD3535 SMD3535 SMD3535
Brightness Nits 5000 5000 5000 6000 6000 7000
Scan N/A 1/10 1/8 1/6 1/5 1/4 1/2
Cabinet Resolution Pixel 240×240 192×192 144×144 120×120 96×96
Power Con. (Max / Avg) W/sqm 800/230 800/230 800/230 800/230 800/230
Module Dimension Mm 320×160 320×160 320×160 320×160 320×160
Cabinet Dimension Mm 960x960x130 960x960x130 960x960x130 960x960x130 960x960x130
Cabinet Weight Kg 27kg 27kg 27kg 27kg 27kg
Service Access N/A Rear Rear Rear Rear Front/Rear
Rotation Angle Deg. -10°and +10° -10°and +10 ° -10°and +10° IP Rate -10°and +10°
Refresh Rate Hz 1920 1920 1920 1920 1920
Grey Scale (bit) bit 16 16 16 16 16
Viewing Angle (H/V) Deg. 140/80 140/80 140/80 140/80 140/80
IP Rate IP IP65 IP65 IP65 IP65 IP65
Life span Hrs 100000 hrs 100000 hrs 100000 hrs 100000 hrs 100000 hrs
Working Temperature -10-40 -10-40 -10-40 -10-40 -10-40
Storage Temperature -20-60 -20-60 -20-60 -20-60 -20-60
Power Supply V AC100-240V(50-60Hz) AC100-240V(50-60Hz) AC100-240V(50-60Hz) AC100-240V(50-60Hz) AC100-240V(50-60Hz)
Color temperature N/A 3000-10000 K(adjustable) 3000-10000 K(adjustable) 3000-10000 K(adjustable) 3000-10000 K(adjustable) 3000-10000 K(adjustable)

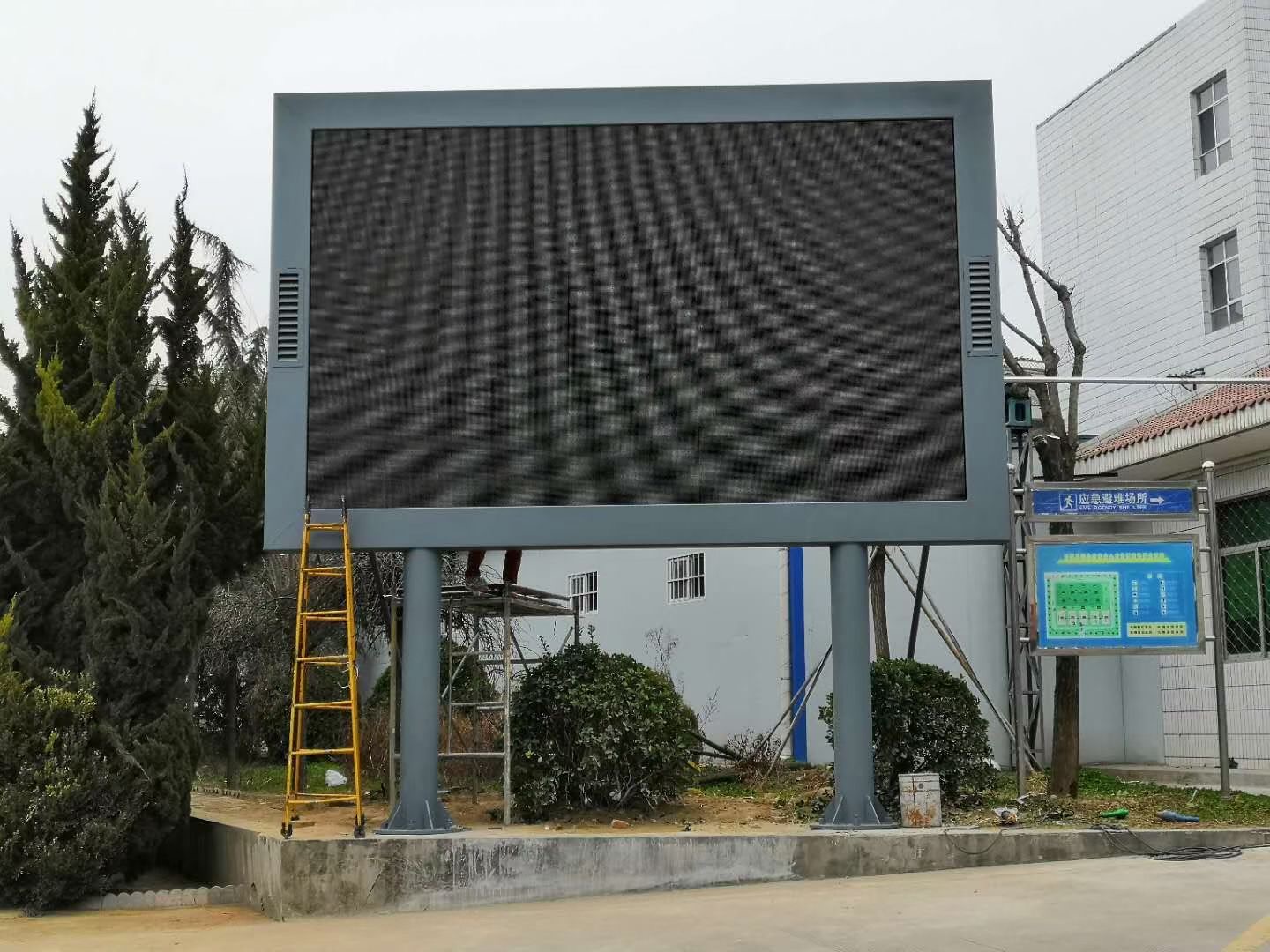

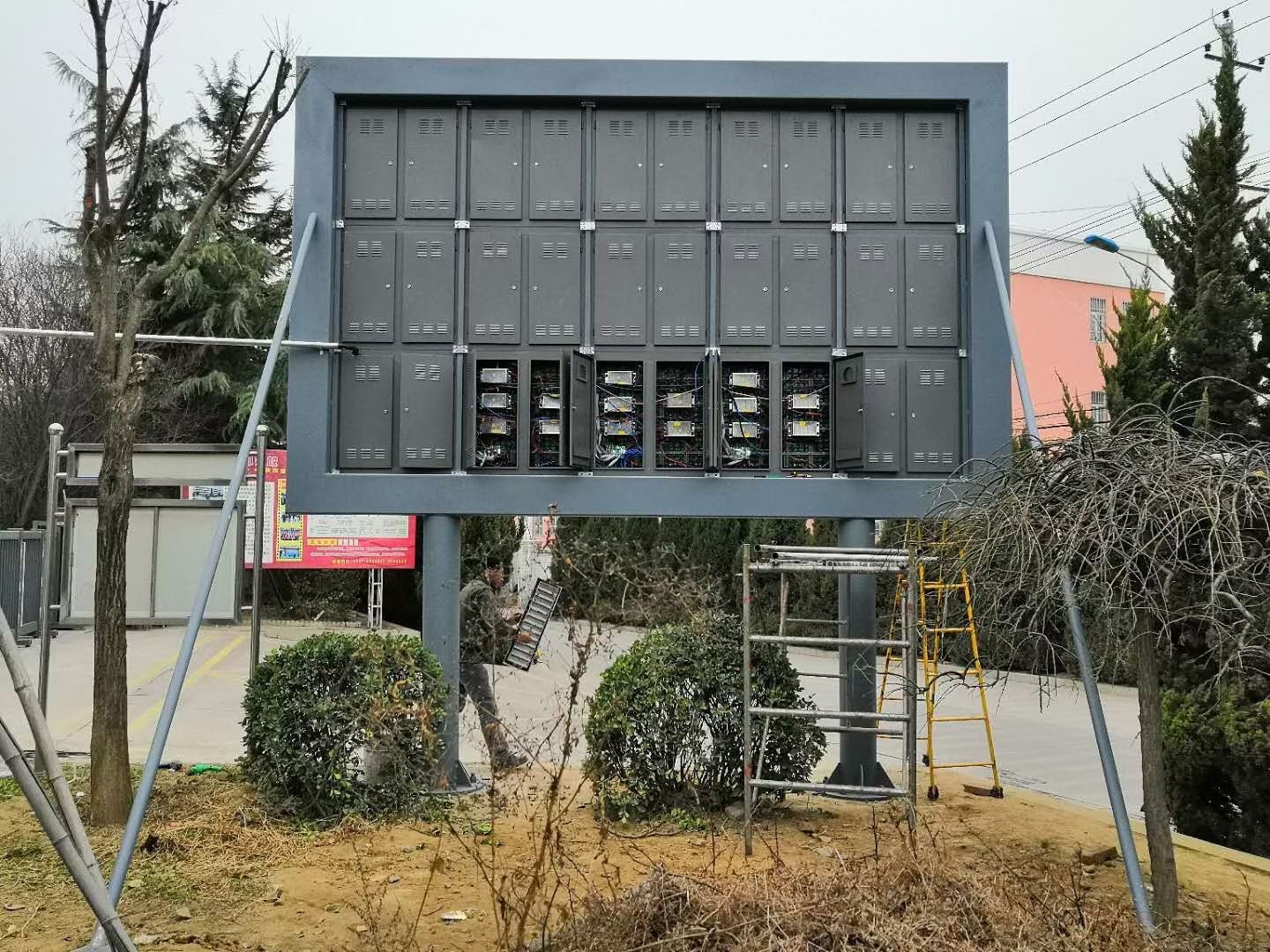

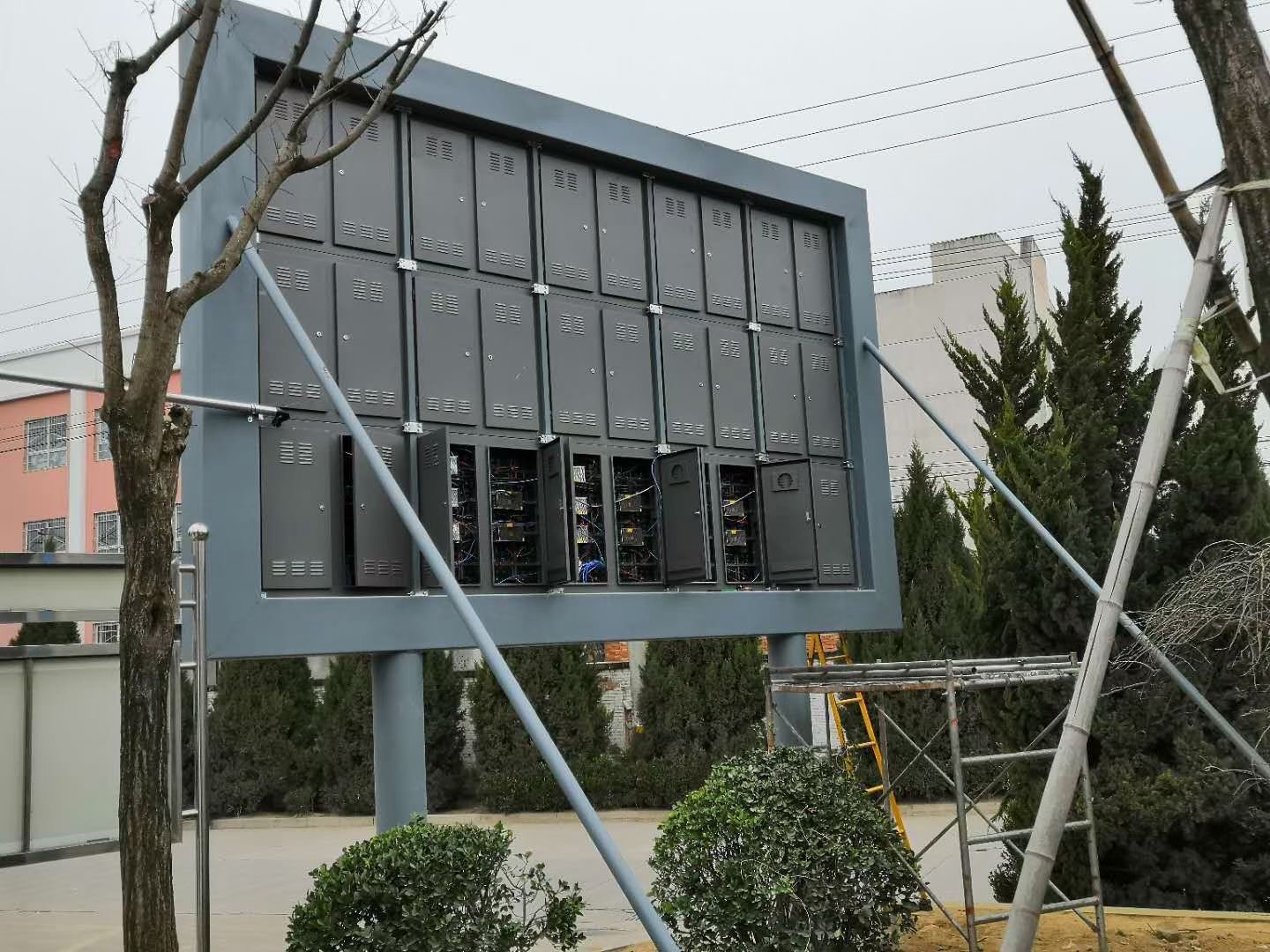

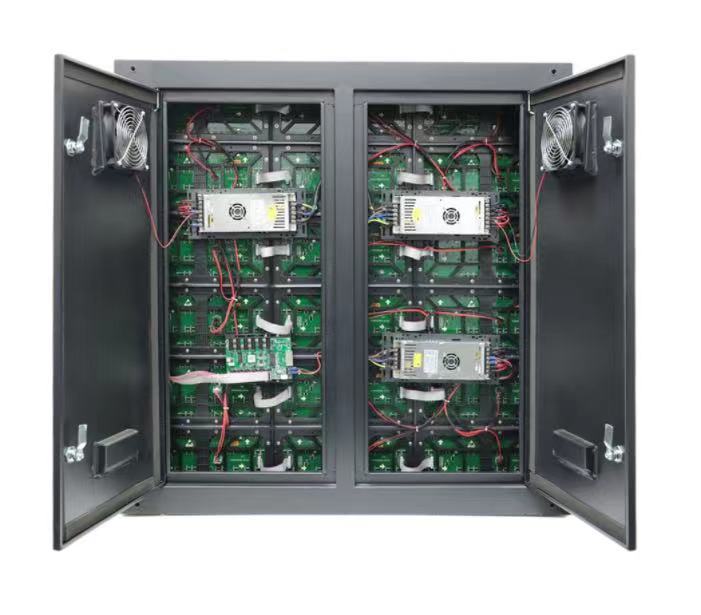

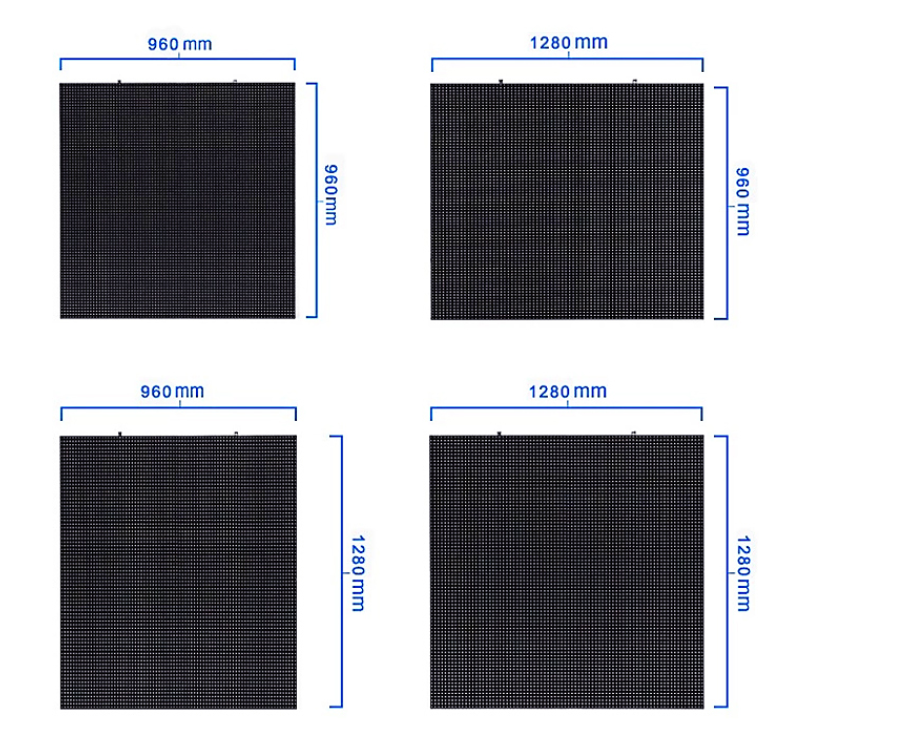

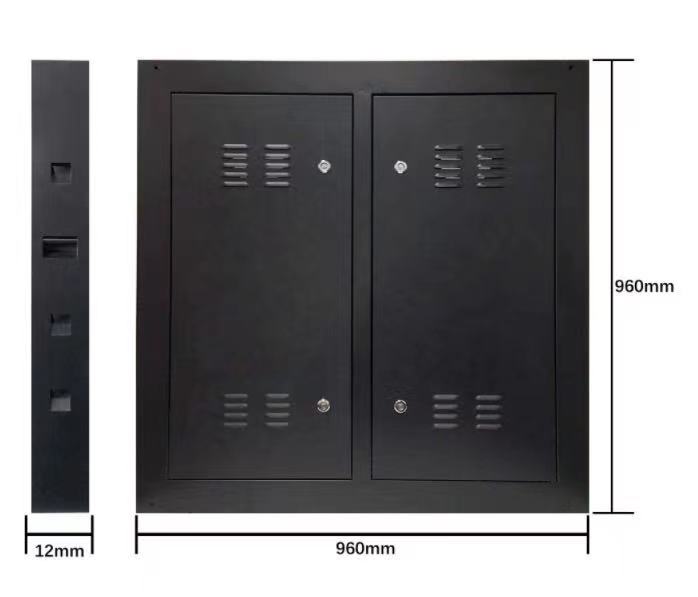

01e770b412450142ae658438e6768c8 5bfd5bfd97c00f3aef3729721aa6543 2eae5c80c81d81b2f8db858ce5e9e9d (1) 4352aa44044ff6aca828d4f5acf220a 7043abd302d21de8ce2c7d62c37aac2 db4817191becbfd63476a0b6eeef074

Packaging & Delivery

There are mainly three types of packing way:

20210817144141

Delivery way

1. By sea:Maritime transportation is a way of transporting goods between ports in different countries and regions by sea lanes, and it is the most important mode of transportation in international trade.

sea

2. By air:Air transport has won a considerable market with its fast, safe, punctual and super-high efficiency, greatly shortening the delivery time, and greatly promoting the logistics supply chain to speed up the capital turnover and circulation.

air

3.By express: TNT/UPS/DHL/FEDEX,It is more convenient and quick,It is mainly used for transporting goods with small volume and light weight.

interExpress

Shipping port:shenzhen /guangzhou/tianjin port.

Shipping term:EXW term、FOB term、CIF term

Payment types: T/T transfer,Weston union
