Outdoor front maintenance screen P8 P10 320*160 module

Short Description:

1.Size :960*960mm*120mm

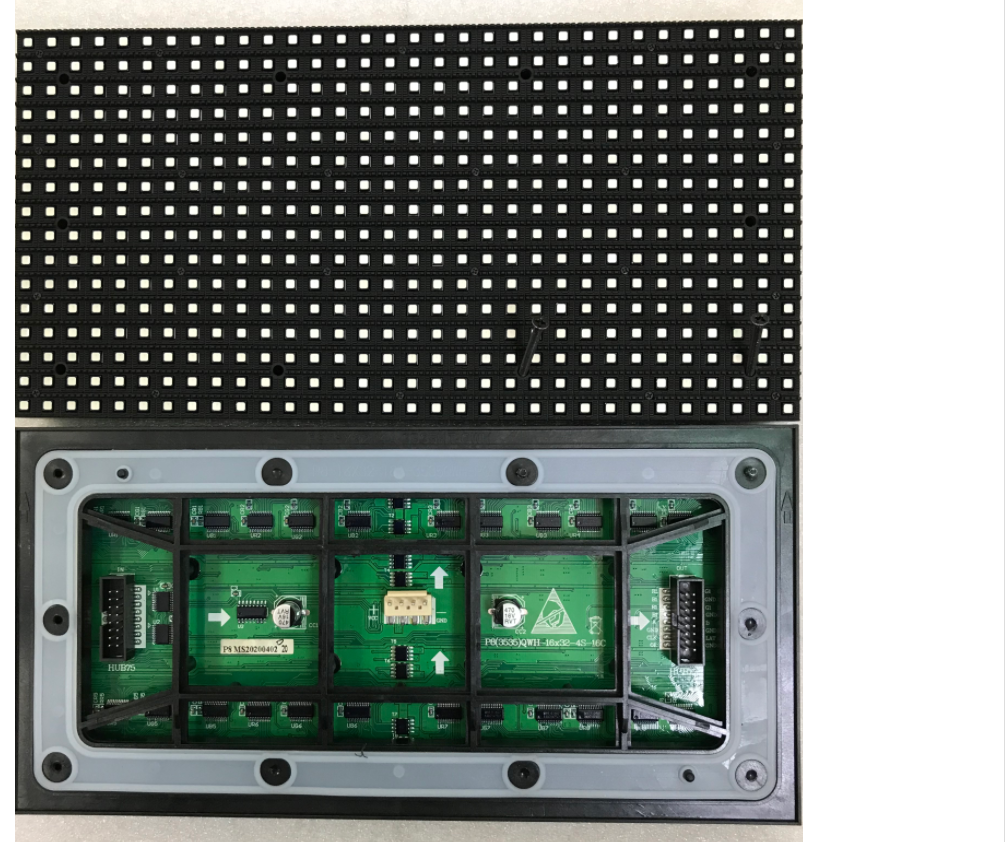

2.Module Size: 320*160mm 320*320mm

3.Weight: 16.8Kg

4.Color: black, blue,grey,white

5.Installation way :fixed installation

6.Use Environment: outdoor front maintenance screen

7.Accessory: fast lock, power plate, received plate, connect plate


Product Detail

Product Tags

Specification

Outdoor Front Access Module LED Billboard

Pitch 5mm 6mm 8mm 10mm
Module Size 160*160mm 192*192mm 256*128mm 320*160mm
Cabinet Size 960*960mm 960*960mm 1024*1024mm 1280*960mm
Cabinet Pixel Resolution 192*192 160*160 128*128 128*96
Pixel Density/m2 40000 27777 15625 10000
LED Type SMD1921 SMD2727 SMD3535 SMD3535
Driving Method 1/8 Scan 1/4 Scan 1/4 Scan 1/2 Scan
Refresh Rate 3840Hz 3840Hz 3840Hz 3840Hz
Brightness 5000 Nits 5800 Nits 6000 Nits 6500 Nits
Optimal Viewing Distance 5-17m 6-20m 8-26m 10-33m
Avg. Power Consumption 270W/m2 310W/m2 290W/m2 300W/m2
Max. Power Consumption 625W/m2 670W/m2 640W/m2 650W/m2
Net Weight 41Kg 40Kg 46Kg 54Kg
Gross Weight 51Kg 50Kg 56Kg 64Kg
IC MBI5124
Brightness Control 256 Grade/Each Color
View Angle 140/120
Ingress Protection IP65
Input Voltage AC110/220V, 50/60Hz
Operating Temperature -30~60
Life Span 100000 Hours
Packing Wooden Case

5be265f22e846feb22af0b90941ba9e

60b00a6d26df15aeaa494fc2ec

3cd043e62ebced4ab28b47d739

03779fb88e3a10e151f395dd6

b0f88a87335280236eec094a7449183 f6eb46d51ed96b0bfa28b57c7f28089

Packaging & Delivery

There are mainly three types of packing way:

20210817144141

Delivery way

1. By sea:Maritime transportation is a way of transporting goods between ports in different countries and regions by sea lanes, and it is the most important mode of transportation in international trade.

sea

2. By air:Air transport has won a considerable market with its fast, safe, punctual and super-high efficiency, greatly shortening the delivery time, and greatly promoting the logistics supply chain to speed up the capital turnover and circulation.

air

3.By express: TNT/UPS/DHL/FEDEX,It is more convenient and quick,It is mainly used for transporting goods with small volume and light weight.

interExpress

Shipping port:shenzhen /guangzhou/tianjin port.

Shipping term:EXW term、FOB term、CIF term

Payment types: T/T transfer,Weston union
