Outdoor front maintenance screen P6.67 320*320 module

Short Description:

1.Size :960*960mm*120mm

2.Module Size:320*320mm

3.Weight: 16.8Kg

4.Color: black, blue,grey,white

5.Installation way :fixed installation

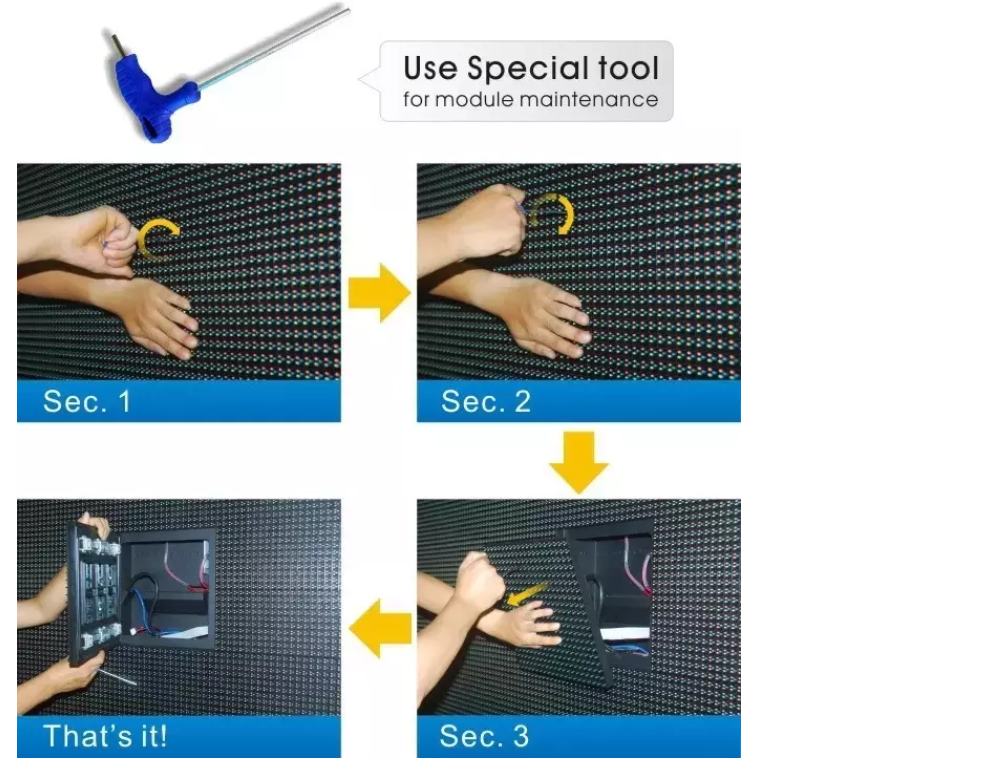

6.Use Environment: outdoor front maintenance screen

7.Accessory: fast lock, power plate, received plate, connect plate

Product Detail

Product Tags

Technical Parameters

Item Feature Parameter

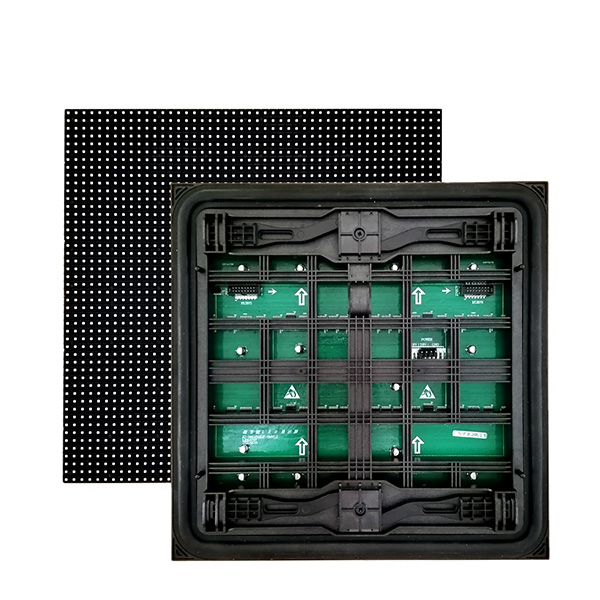

Module Module Number LJX- P6.67 -6S
Module Size 320mm*320mm
Pixels Density 22500dots/sqm
Pixels Pitch 6.67mm
Package Mode Nationstar copper SMD2727
IC MBI5124
Pixel Resolution 48*48dots
Module Thickness 18mm
Module Weight 0.8KG
Drive Mode 1/6 Scan

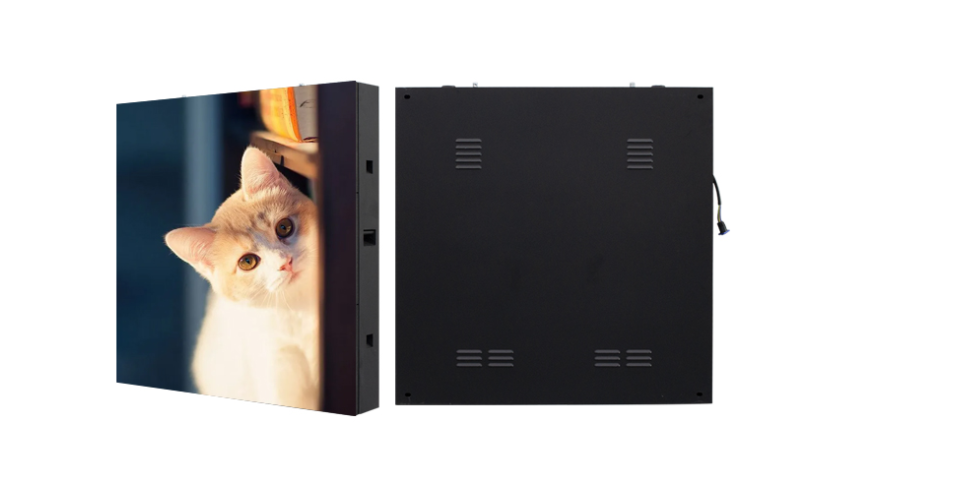

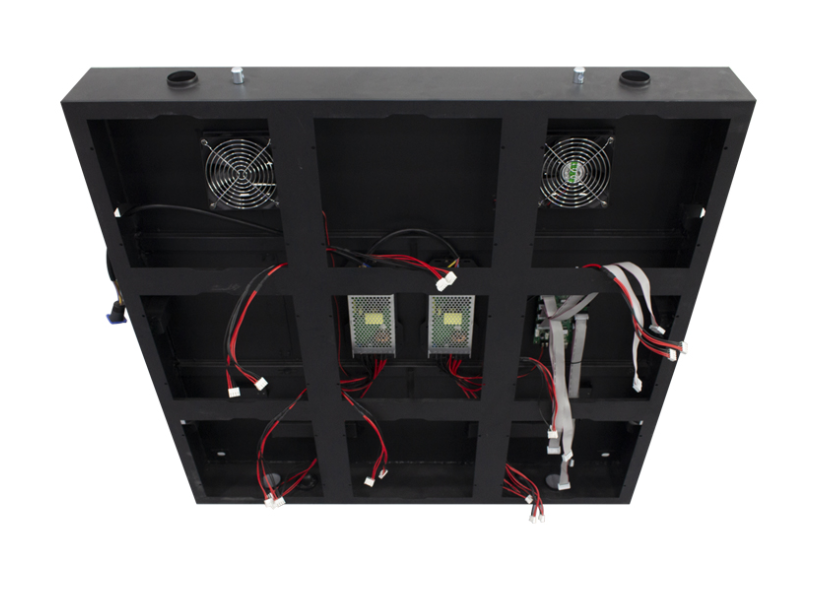

Cabinet Dimension 960mm(W)*960mm(H)
Module Quantity 3*3=9PCS
Cabinet Material Die-cast cabinet
Average Power Consumption ≤300W/sqm
Max Power Consumption ≤800W/sqm
Working Voltage AC110-220V±10%
Best Viewing Angle 160°(V)120°(H)
Screen Brightness ≥5500CD/sqm
Refresh frequency 1920HZ
Viewing Distance ≥6m
Working temperature -20℃/+60℃
Operation Humidity 10%-95%RH
Gray Level 65536 grade
Luminance Level / Color RGB256
Life span ≥100,000 hours
Warranty time 1 years



4cbf9e273f3b838d2139fbb4a9b3816 23654657a224d114b3547a57aaddaba e21460946f2c5575634b83d9244b679 fb4e5c36b16a293c255b910882ff4a8

Packaging & Delivery

There are mainly three types of packing way:


Delivery way

1. By sea:Maritime transportation is a way of transporting goods between ports in different countries and regions by sea lanes, and it is the most important mode of transportation in international trade.


2. By air:Air transport has won a considerable market with its fast, safe, punctual and super-high efficiency, greatly shortening the delivery time, and greatly promoting the logistics supply chain to speed up the capital turnover and circulation.


3.By express: TNT/UPS/DHL/FEDEX,It is more convenient and quick,It is mainly used for transporting goods with small volume and light weight.


Shipping port:shenzhen /guangzhou/tianjin port.

Shipping term:EXW term、FOB term、CIF term

Payment types: T/T transfer,Weston union
