Outdoor double side pole light fixed installnation cabinet

Short Description:

1.Cabinet Size :Customized cabinet size

2.Module Size: 320*160mm 192*192mm 256*128mm

3.Cabinet color: black, blue,gray,white

4.Installation way :fixed on the pole

6.Use Environment/IP level: outdoor /IP65

7.Standard accessory:power plate, received plate


Product Detail

Product Tags

Product information

Place of Origin Shenzhen,Guangdong, China
Model size Any size can be customized
Brand Name RUICHEN
Tube Chip Color Full color
Display Function Video
Use Environment Outdoor
Pixels P10mm/P 5mm/P6.67mm/P8mm/P6mm/P4mm
Screen Dimension Custom Made
Module size 320*160 mm,192*192mm,256*128mm
Color black, blue, gray,white
Certificate ISO9001,CE
Application Advertising



Name

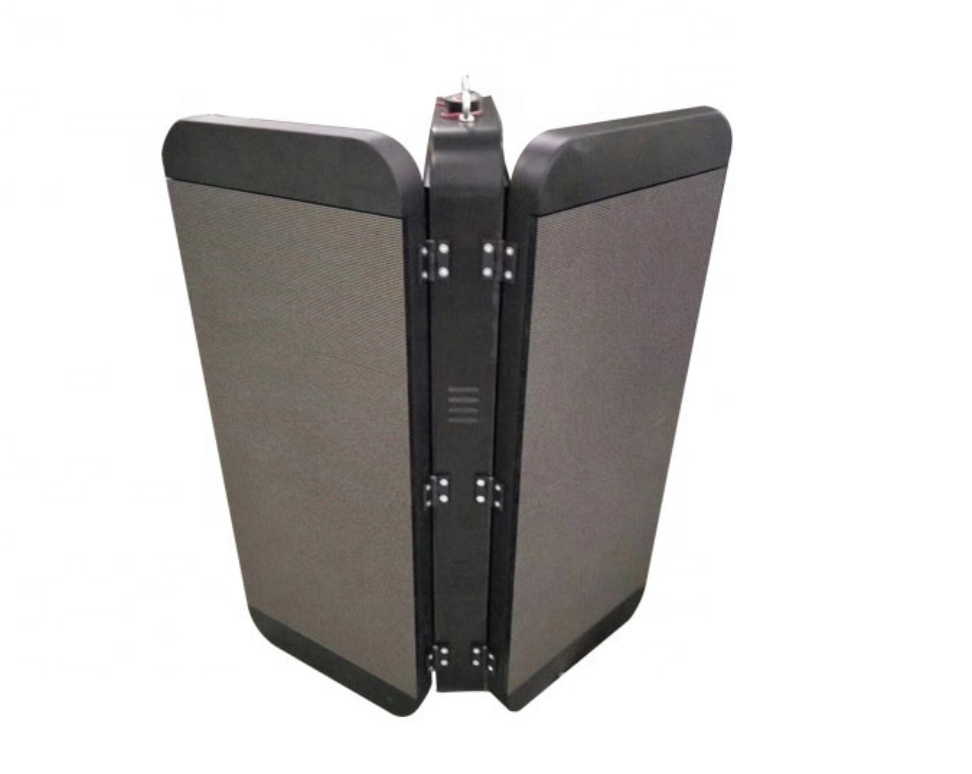

LED display double side pole light cabinet

Material

Iron

Aluminium

Cabinet size

0.6

0.6

0.6

0.6

Plate thickness

1.0mm

1.2mm

1.0mm

1.2mm

1.5mm

1.8mm

1.5mm

1.8mm

Standard accessory

Power supply plate,received card plate

Specification

ITEM HD Outdoor Light Pole Screen
Product model SJ-P10
Pixel pitch 10mm
Physical density 10000dots/m2
LED Package SMD3535(3in1)

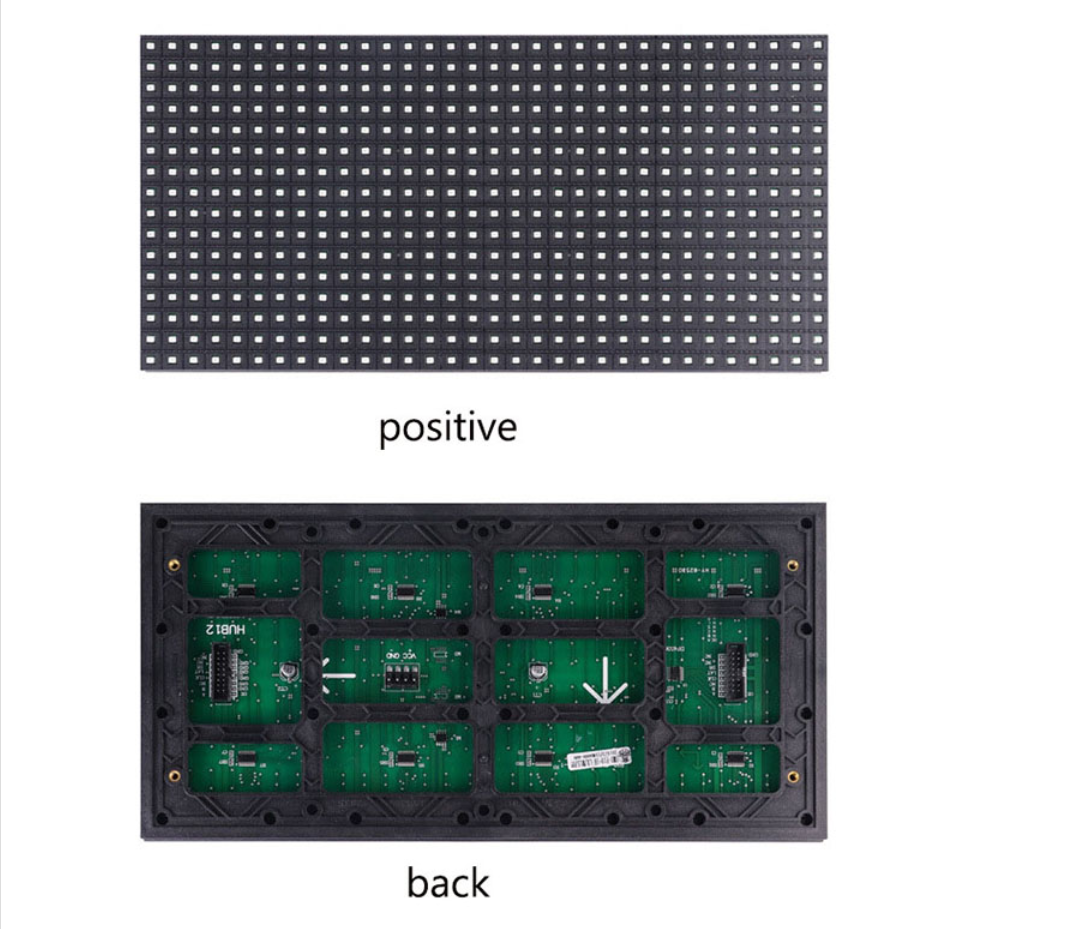

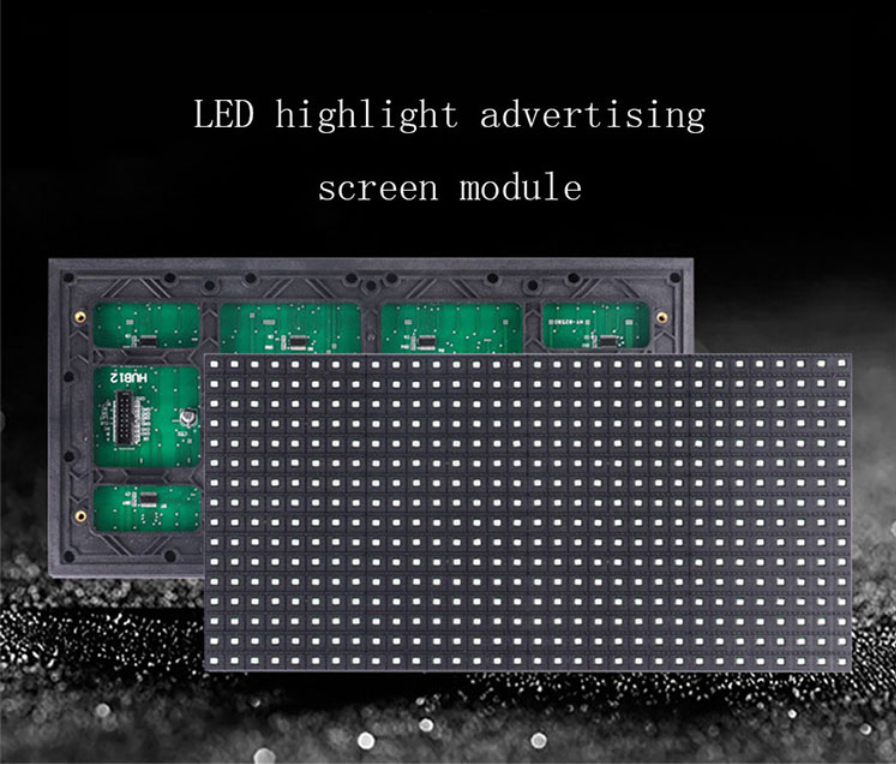

Module size 320mm*160mm
Modules resolution 32dotsx16dots
Modules weight 0.4kg
Driving method 1/2scan/1/4scan
Interface definition HUB-16P
Cabinet size 960mm*1600mm*160mm
Cabinets weight 55kg
Cabinets resolution 96dotsx160dots
Equilibrium brightness >6500cd/m2
Power consumption Max:995W/m2,Average 490w/m2
Refresh rate 3840Hz(ICN2055 Driving IC)
Viewing angle Level H:160°Optional, V: 120°Optional
Viewing distance 10-120m
Temperature Working:-25~60Storage:-3580
Humidity 10%~95%
Working voltage Input: AC 100V240V50Hz/60Hz,Output: DC 5V
Maintenance method Front/Back service
Protection grade Front:IP65,Back: IP65
Lifetime 100000 Hours

0290c413dc287fdf09d1dd30602ec90 74255c698bea003e5d062e155177b4e 7177714bd822ee807661d3b612bcabe 5985d54309e3e29652b1fef16c35923 1a0d8dbe71bb5f6cc9f7111fef1da12

Packaging & Delivery

There are mainly three types of packing way:

20210817144141

Delivery way

1. By sea:Maritime transportation is a way of transporting goods between ports in different countries and regions by sea lanes, and it is the most important mode of transportation in international trade.

sea

2. By air:Air transport has won a considerable market with its fast, safe, punctual and super-high efficiency, greatly shortening the delivery time, and greatly promoting the logistics supply chain to speed up the capital turnover and circulation.

air

3.By express: TNT/UPS/DHL/FEDEX,It is more convenient and quick,It is mainly used for transporting goods with small volume and light weight.

interExpress

Shipping port:shenzhen /guangzhou/tianjin port.

Shipping term:EXW term、FOB term、CIF term

Payment types: T/T transfer,Weston union
