LED cross pharmacy outdoor cabinet

Short Description:

1. Size :960*960*120mm

2.Weight: 25.7Kg

3. color: black, blue,white,green

4.Installation way :fixed installation

5.Use Environment: outdoor

6.accessory: power plate, received plate

Product Detail

Product Tags


Outdoor Front Access Module LED Billboard
Pitch 5mm 6mm 8mm 10mm
Module Size 160*160mm 192*192mm 256*128mm 320*160mm
Cabinet Size 960*960mm 960*960mm 1024*1024mm 1280*960mm
Cabinet Pixel Resolution 192*192 160*160 128*128 128*96
Pixel Density/m2 40000 27777 15625 10000
LED Type SMD1921 SMD2727 SMD3535 SMD3535
Driving Method 1/8 Scan 1/4 Scan 1/4 Scan 1/2 Scan
Refresh Rate 3840Hz 3840Hz 3840Hz 3840Hz
Brightness 5000 Nits 5800 Nits 6000 Nits 6500 Nits
Optimal Viewing Distance 5-17m 6-20m 8-26m 10-33m
Avg. Power Consumption 270W/m2 310W/m2 290W/m2 300W/m2
Max. Power Consumption 625W/m2 670W/m2 640W/m2 650W/m2
Net Weight 41Kg 40Kg 46Kg 54Kg
Gross Weight 51Kg 50Kg 56Kg 64Kg
IC MBI5124
Brightness Control 256 Grade/Each Color
View Angle 140/120
Ingress Protection IP65
Input Voltage AC110/220V, 50/60Hz
Operating Temperature -30~60
Life Span 100000 Hours
Packing Wooden Case


LED display cross sign is a very effective communication and advertising tool, which can display variable messages indoor or outdoor to highlight your pharmacy in the city and impress the potential clients
Smart users know how to make full use of their Cross in order to get the best advertising solution for their pharmacies
Operating voltage: 100 ~ 240 AC,Up to 100,000 hours of operation
8 watt power consumption. (Low energy cost)
Light weight and easy to install
Safe to touch and operate
More led lights. Brighter than neon signs
excellent visibility even in daylight, 8 watt power consumption, Low energy cost

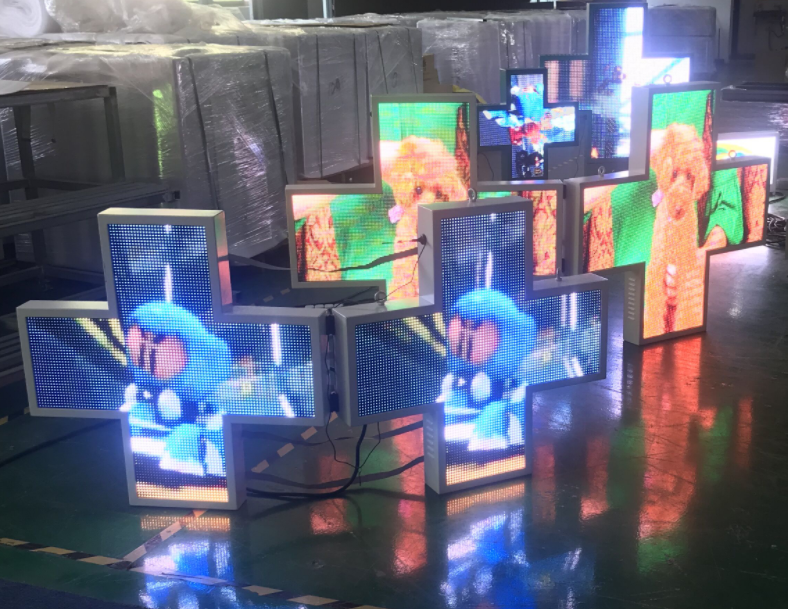

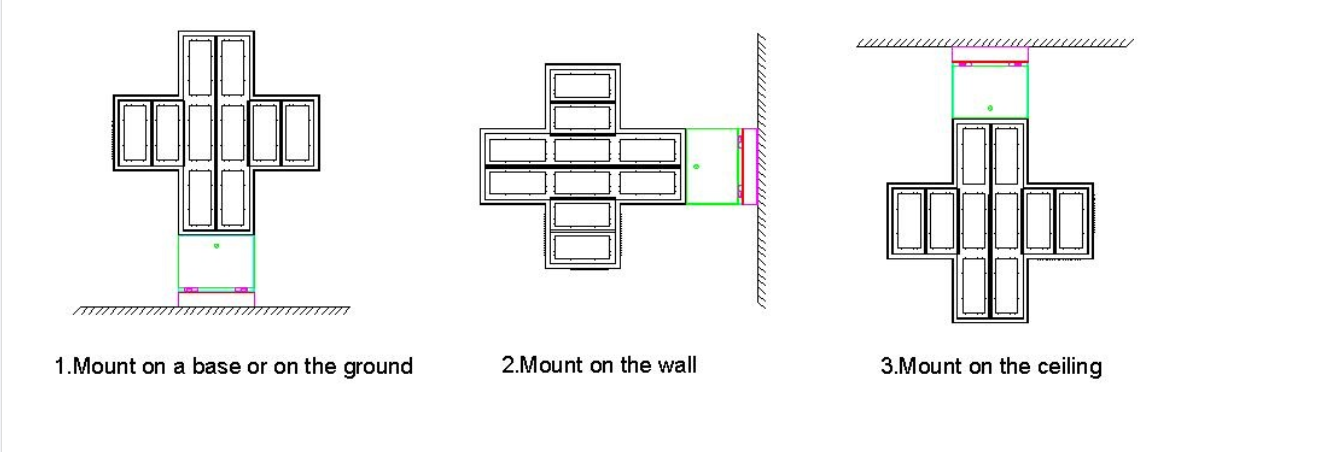

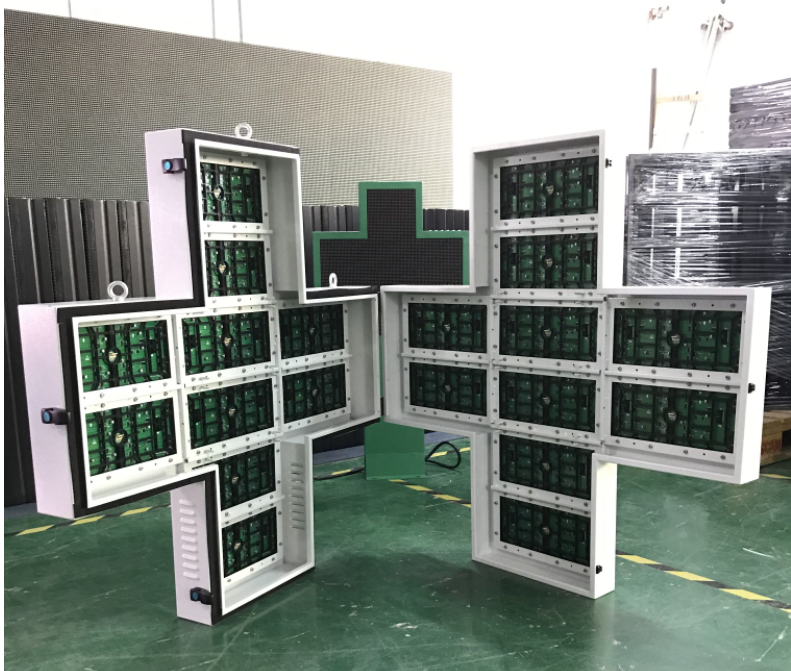

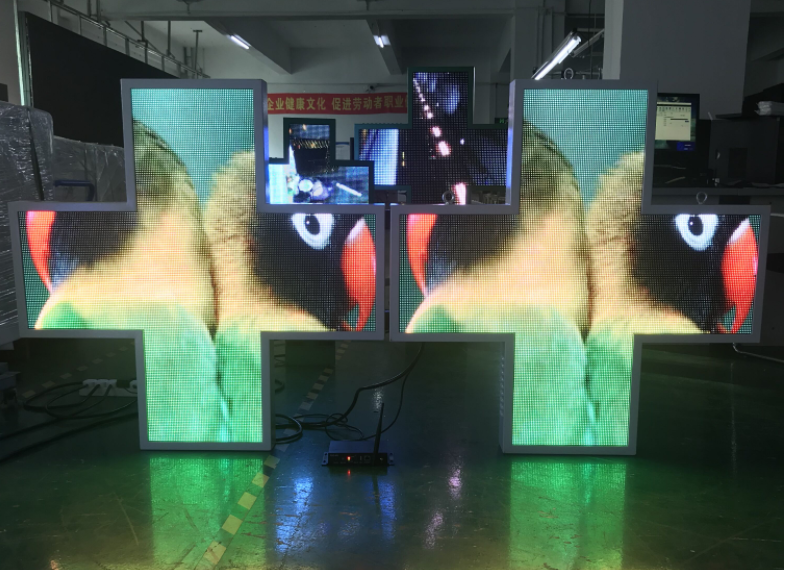

28a0f095b66810d299f10cdbdc35981 6c150f2ff859604f607a560df994051 27f0320cf34fba57e916582b0ba98be 620c1ca26a3aa7f35bcc76bb06e93c5

Packaging & Delivery

There are mainly three types of packing way:


Delivery way

1. By sea:Maritime transportation is a way of transporting goods between ports in different countries and regions by sea lanes, and it is the most important mode of transportation in international trade.


2. By air:Air transport has won a considerable market with its fast, safe, punctual and super-high efficiency, greatly shortening the delivery time, and greatly promoting the logistics supply chain to speed up the capital turnover and circulation.


3.By express: TNT/UPS/DHL/FEDEX,It is more convenient and quick,It is mainly used for transporting goods with small volume and light weight.


Shipping port:shenzhen /guangzhou/tianjin port.

Shipping term:EXW term、FOB term、CIF term

Payment types: T/T transfer,Weston union
