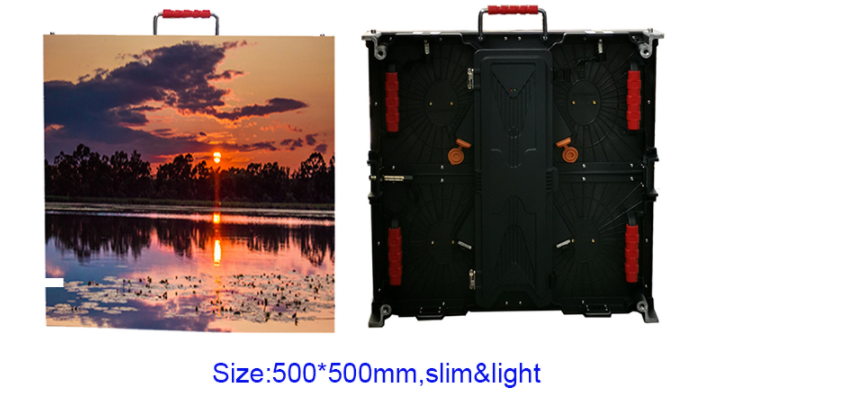

500*500-C aluminium alloy rental cabinet P3.91 P4.81 250*250 module

Short Description:


2.Weight: 4.1kg

3.Module: P2.604/P2.976/P3.91/P4.81

4.Material: Aluminium alloy

5.Installation: Hoisting,Fixed installation,

6.Use of: Indoor/outdoor

7.Accessory: Fast locks,handles,system/power installation plate,connection piece

8.Cabinet color: Black,Blue,Red

9.Door color:Black,Blue,Red

Product Detail

Product Tags

Product information

Related products

PCB Board P2.604/P2.976/P3.91/P4.81
Flight case 8pcs cabinet in one case,10pcs cabinet in one case
Hinging beam one beam holds 1 pcs cabinet,one beam holds 2 pcs cabinet
Power supply 200W-5v40a
Power and data connector 20A 3*2.5㎡ Nation standard


Feature of product


1.The assemble structure is convenient and easy

2.The appearance design is elegant and decent


4.High precision and flatness,it is through CNC machining,the flatness tolerance of 0.03mm

5.High strength,durability,great heat dissipation

6.High universality,can be processed according to module drawing,used for outdoor and indoor

7.It is through salt &fog testing for 48 hours

8.The adhesive force of surface reaches the professional standard

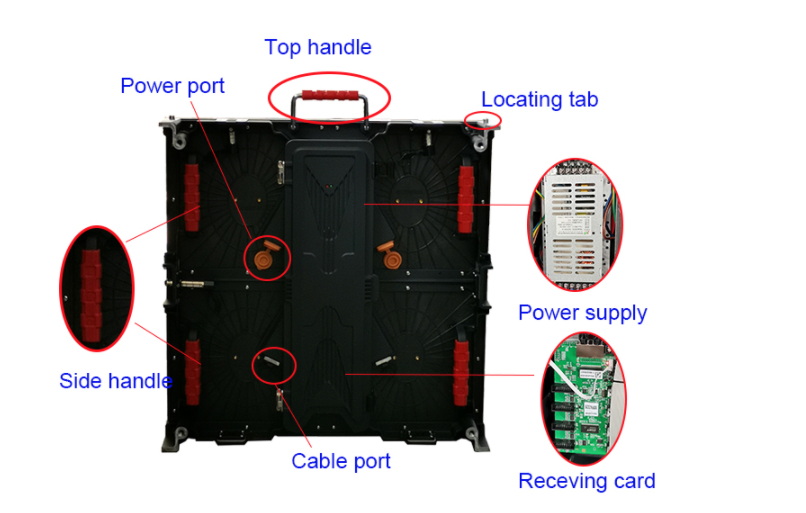

The cabinet accessory details



500x500mm 500*1000mm indoor p3.91 advertising led screen
type SMD2121
composition 1R1G1B
Scan method 16 S
resolution 64x 64dots (W x H)
Pixel pitch 3.91mm
Module size 250 x 250 mm
Module quantity 2×2
resolution 128 x 128(W x H)
Cabinet size 500 x 500mm/500*1000mm
Panel Type and Material Die-casting aluminum
Cabinet weight 4.2kgs
Best viewing distance 3-45m
Maximum power <800W /m2
Viewing angle 160°/160°
Brightness 1200 cd/m2
Pixel density 65536 dot/m2
Control system Synchronous  System
lifespan 100,000 hours
Frame frequency 60Hz
installation Hanging/Fixed with support bracket
certification CE, ROSH

3bf772c5494786e5facf53ab7b68167 4a36b30fc50dfcb63e31fe115ea5e34




Packaging & Delivery

There are mainly three types of packing way:


Delivery way

1. By sea:Maritime transportation is a way of transporting goods between ports in different countries and regions by sea lanes, and it is the most important mode of transportation in international trade.


2. By air:Air transport has won a considerable market with its fast, safe, punctual and super-high efficiency, greatly shortening the delivery time, and greatly promoting the logistics supply chain to speed up the capital turnover and circulation.


3.By express: TNT/UPS/DHL/FEDEX,It is more convenient and quick,It is mainly used for transporting goods with small volume and light weight.


Shipping port:shenzhen /guangzhou/tianjin port.

Shipping term:EXW term、FOB term、CIF term

Payment types: T/T transfer,Weston union
