500*1000-B aluminium rental cabinet P3.91 P4.81 LED screen

Short Description:

1.Size:500*1000*75mm

2.Weight: 7.2kg

3.Module: P2.5/P2.976/P3.91/P4.81/P5.95/P6.25

4.Material: Aluminium alloy

5.Installation: Hoisting,Fixed installation,

6.Use of: Indoor/outdoor

7.Accessory: Fast locks,handles,system/power installation plate,connection piece

8.Cabinet color: Black,Blue,Red

9.Door color:Black,Blue,Red


Product Detail

Product Tags

Product information

Related products

PCB Board P2.976/P3.91/P4.81/P5.95/P6.25
Flight case 5pcs cabinet in one case,6pcs cabinet in one case
Hinging beam one beam holds 1 pcs cabinet,one beam holds 2 pcs cabinet
Power supply 200W-5v40a,300W-5v60a
Power and data connector 20A 3*2.5Nation standard



Feature of product



1.The assemble structure is convenient and easy

2.The appearance design is elegant and decent

3.Ultra-light,Ultra-thin

4.High precision and flatness,it is through CNC machining,the flatness tolerance of 0.03mm

5.High strength,durability,great heat dissipation

6.High universality,can be processed according to module drawing,used for outdoor and indoor

7.It is through salt &fog testing for 48 hours

8.The adhesive force of surface reaches the professional standard

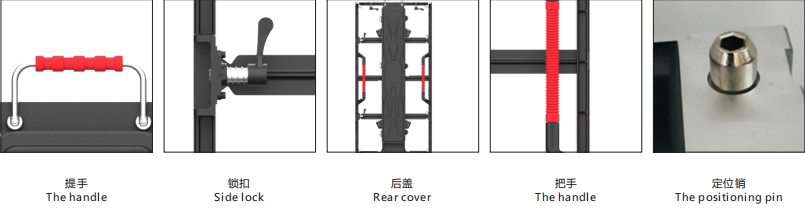

Cabinet details

cabinet-details-500x1000-A

Cabinet accessory

cabinet-accessory-500x1000-A

Specification

500*1000 Indoor series

ITEM

UNIT

Indoor-2.604

Indoor-2.976

Indoor-3.91

Indoor-4.81

Pixel Pitch

Mm

2.604

2.976

3.91

4.81

Pixel Matrix Per

Pixel/sqm

147456

112896

65536

43264

Module Pixel structure

N/A

SMD2121/1515

SMD2121/1515

SMD2121

SMD2121

Brightness

Nits

800-1000MCD

800-1000MCD

800-1000MCD

800-1000MCD

Scan

N/A

1/32

1/28

1/16

1/13

Cabinet Resolution

Pixel

192×384

168×336

128×256

104×208

Power Con. (Max / Avg)

W/sqm

800/400

800/400

800/400

800/400

Module Dimension

mm

250×250

250×250

250×250

250×250

Cabinet Dimension

mm

500x1000x90

500x1000x90

500x1000x90

500x1000x90

Cabinet Weight

Kg

14kg

14kg

14kg

14kg

Service Access

N/A

Rear/Front

Rear/Front

Rear/Front

Rear/Front

View angle

160°/ 140°

160°/ 140°

160°/ 140°

160°/ 140°

Refresh Rate

Hz

1920/3840

1920/3840

1920/3840

1920/3840

Grey Scale (bit)

bit

16

16

16

16

IP Rate

IP

IP31

IP31

IP31

IP31

Life span

hrs

100000 hrs

100000 hrs

100000 hrs

100000 hrs

Working Temperature

-30-60

-30-60

-30-60

-30-60

Storage Temperature

-20-60

-20-60

-20-60

-20-60

Power Supply

V

AC100-240V(50-60Hz)

AC100-240V(50-60Hz)

AC100-240V(50-60Hz)

AC100-240V(50-60Hz)

Color temperature

N/A

3000-10000 K(adjustable)

3000-10000 K(adjustable)

3000-10000 K(adjustable)

3000-10000 K(adjustable)

91b86d955364d654f880d03ef357eee dfcb355d5c126164ae5a25c82147088 f5781fd3198c44a197c0650769c1bc5 fcf4fc30ee1ae39eedb8f1b7010fe8a

Packaging & Delivery

There are mainly three types of packing way:

20210817144141

Delivery way

1. By sea:Maritime transportation is a way of transporting goods between ports in different countries and regions by sea lanes, and it is the most important mode of transportation in international trade.

sea

2. By air:Air transport has won a considerable market with its fast, safe, punctual and super-high efficiency, greatly shortening the delivery time, and greatly promoting the logistics supply chain to speed up the capital turnover and circulation.

air

3.By express: TNT/UPS/DHL/FEDEX,It is more convenient and quick,It is mainly used for transporting goods with small volume and light weight.

interExpress

Shipping port:shenzhen /guangzhou/tianjin port.

Shipping term:EXW term、FOB term、CIF term

Payment types: T/T transfer,Weston union
