640*640-B aluminium rental cabinet P4 P5 P8 P10 320*160 module

Short Description:

1.Size:640*640*74mm

2.Weight: 5.5kg

3.Module: P1.904/P2.5/P5/P10

4.Material: Aluminium alloy

5.Installation: Hoisting,Fixed installation,

6.Use of: Indoor/outdoor

7.Accessory: Fast locks,handles,system/power installation plate,connection piece

8.Cabinet color: Black,Blue,Red

9.Door color:Black,Blue,Red


Product Detail

Product Tags

Product information

Related products

PCB Board P1.904/P2.5/P5/P10mm
Flight case 5pcs cabinet in one case,8pcs cabinet in one case
Hinging beam one beam holds 1 pcs cabinet,one beam holds 2 pcs cabinet
Power supply 200W-5v40a,300W-5v60a
Power and data connector 20A 3*2.5Nation standard



Feature of product



1.Fast cooling—excellent heat dissipation performance to protect the modular circuit

2..Anti-interference—special anti electromagnetic interference function

3.Ultra-light,Ultra-thin

4.High precision and flatness,it is through CNC machining,the flatness tolerance of 0.03mm

5.High universality,can be processed according to module drawing,used for outdoor and indoor

6.Easy installation—Installation takes only 20 seconds

7.The adhesive force of surface reaches the professional standard

8.High cost-effective—large-scale production,complete production&supply chain

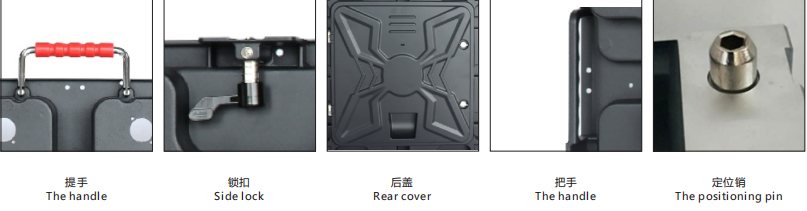

Cabinet details

cabinet-details-640x640-B

Cabinet accessory

cabinet-accessory-500x1000-A



Outdoor P5 640*640mm Led Screen Parameter

Module
Dimension(w*h) 320*160mm Resolution(w*h) 64*32 dots
Pixel Pitch 5mm Pixel Density 2048 dots
Pixel configuration 1G1B1R 3IN1 Package mode SMD 2727 King light
Drive type Constant drive Scan mode 1/8 scan
Brightness of white balance 7500cd/m2 Refresh Frequency >960HZ
Standard LED Cabinet
Dimension(w*h*d)(mm) 640*640*70mm Module Quantity 8pcs
Pixel per cabinet(w*h) 128*128 dots Physical Pixel (total) 16384 dots
Weight/panel (kgs) 9 kg Cabinet Material Die Casting Aluminum
Best viewing angle(w*h) 160*140 Best viewing distance 5-50m
POWER
Working voltage AC 110-220V ±10%
Average power consumption 300W/m2
Max power consumption 1000 W/m2
Current 20 mA
Temperature Storage: -35–85working: -10–50
Relative humidity 10%-95%
Parameter
Driving IC 2037
Power supply 200w
Refresh Frequency >960 HZ
Grey scale 4096 gray level
Signal input format AV,S-VIDEO, VGA, DVI.SDI,HDMI,YPB
Operating system Windows/ cell phone/ WIFI

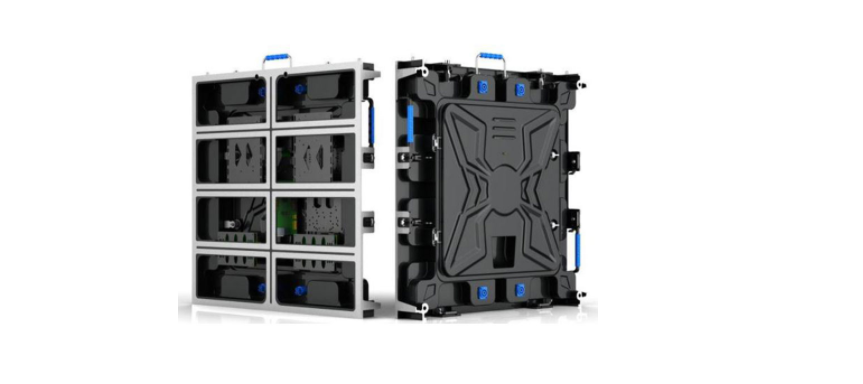

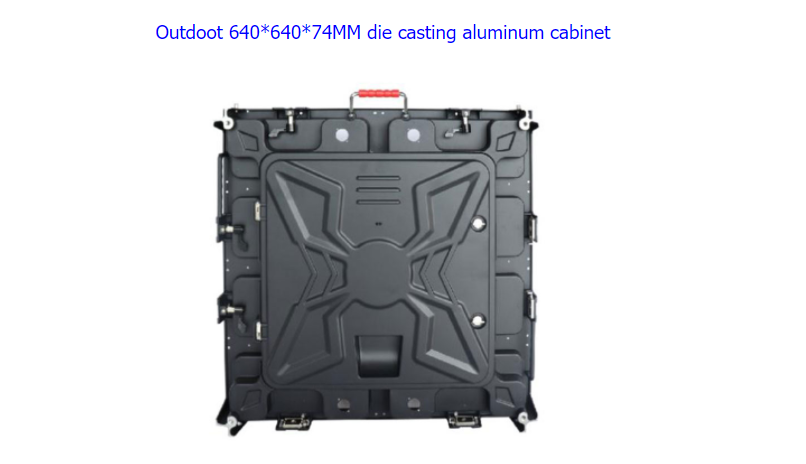

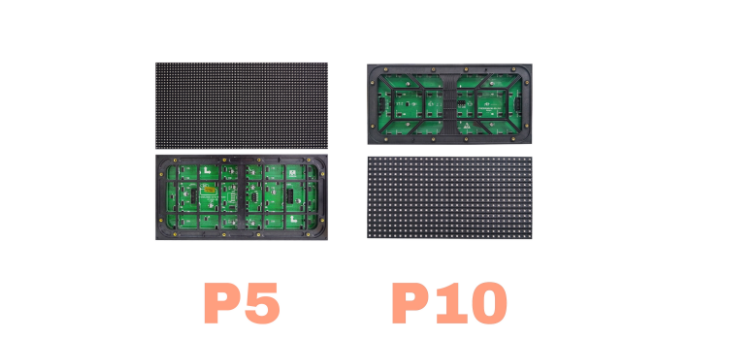

8b16f5424cf779488ede3b2ff69d2a4 7889922ca580a6eb9a4608325362f77 b23474366d61c1bffe795eef1f8e373

Packaging & Delivery

There are mainly three types of packing way:

20210817144141

Delivery way

1. By sea:Maritime transportation is a way of transporting goods between ports in different countries and regions by sea lanes, and it is the most important mode of transportation in international trade.

sea

2. By air:Air transport has won a considerable market with its fast, safe, punctual and super-high efficiency, greatly shortening the delivery time, and greatly promoting the logistics supply chain to speed up the capital turnover and circulation.

air

3.By express: TNT/UPS/DHL/FEDEX,It is more convenient and quick,It is mainly used for transporting goods with small volume and light weight.

interExpress

Shipping port:shenzhen /guangzhou/tianjin port.

Shipping term:EXW term、FOB term、CIF term

Payment types: T/T transfer,Weston union
