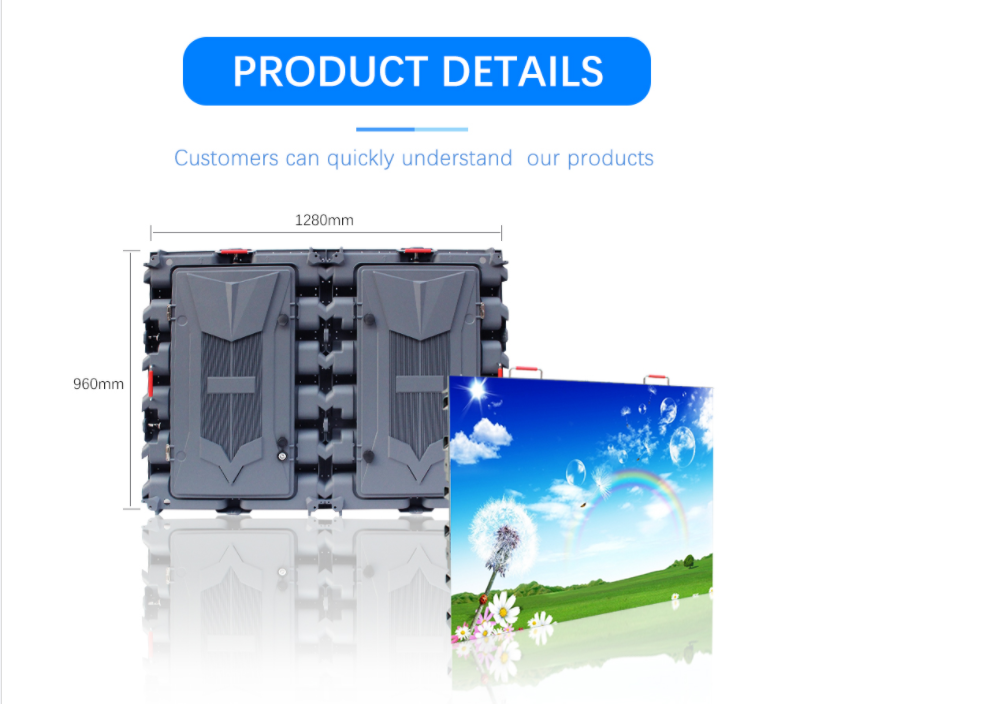

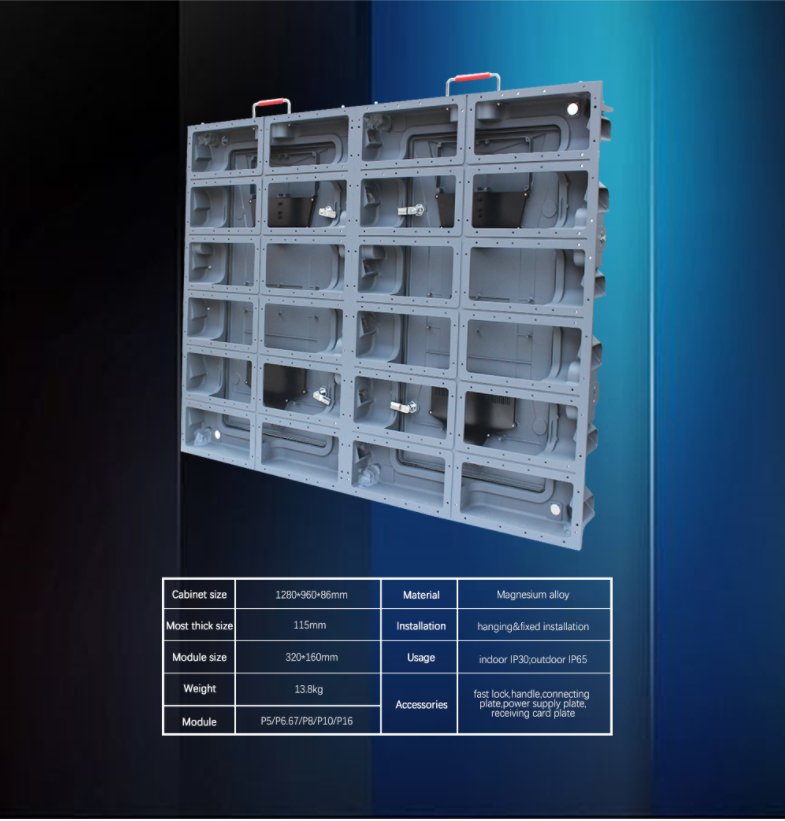

1280*960 LED stadium empty cabinet magnesium alloy die case

Short Description:



3.Module: P5/P6.67/P8/P10/P13.33

4.Material: Magnesium alloy die case

5.Installation:Fixed installation,rental

6.Use of: Indoor and outdoor

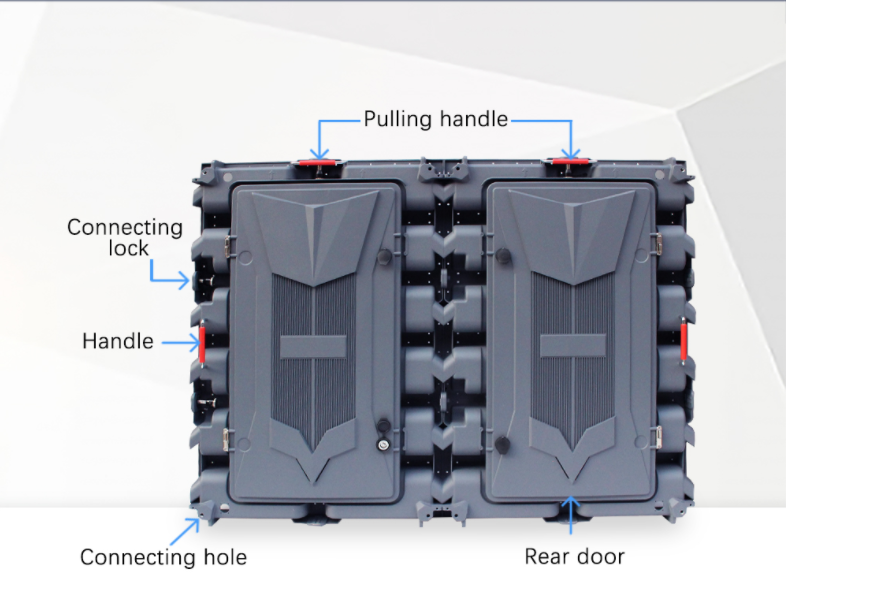

7.Accessory: Fast locks,system/power installation plate,connection piece,Anti-collision cotton,Bracket

8.Door color:Black,silvery,blue

9.Module size:320*160mm

10.IP level: Indoor IP30、Outdoor IP65

Product Detail

Product Tags

Product information

Related products

PCB Board P5/P6.67/P8/P10/P13.33
Flight case 3pcs cabinet in one case,4pcs cabinet in one case
Hinging beam one beam holds 1 pcs cabinet
Power supply 300W-5v60a
Power and data connector 20A 3*2.5Nation standard
Fans 220V/5V , fans size :120*120*25mm


Feature of product


1.The assemble structure is convenient and easy

2.The appearance design is elegant and decent


4.High precision and flatness,it is through CNC machining,the flatness tolerance of 0.03mm

5.High strength,durability,great heat dissipation

6.High universality,can be processed according to module drawing,used for outdoor and indoor

7.It is through salt &fog testing for 48 hours

8.The adhesive force of surface reaches the professional standard

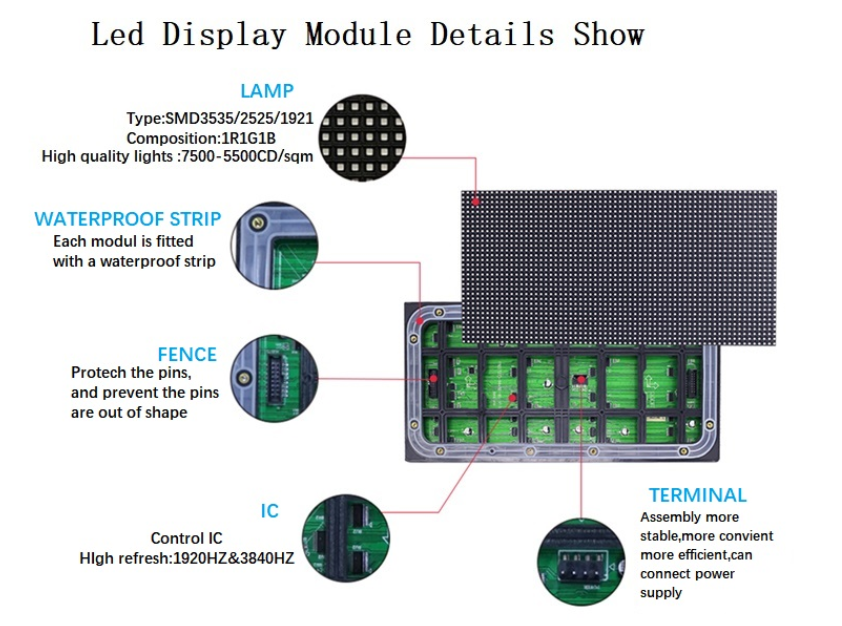

Technical parameters Parameters values
Pixel pitch 10mm
Panel size L320mm×H160mm
Physical density 10000dots/sqm
Pixel configuration 1R,1G,1B
Driving method Constant current
Scan mode 1/4 scan
LED Encapsulation SMD3535
Display resolution 32dots×16dots=512dots
Module weight 0.4KG
Module port HUB75
Module working voltage DC5V
Module consumption 30W
Cabinet size 960mm×960mm/can be customize
Cabinet weight 45kg
Cabinet resolution 96dots×96dots
Viewing angle 140°
Option distance 10m-50m
Driving device 16016
Every square meter module 19.53pcs
Maximum power 1250W/sqm
Frame Frequency 60HZ/S
Refresh frequency 1920HZ/S
Equilibrium brightness 7500CD/sqm
Working environment temperature -10°C~+70°C
Working environment humidity 10%~90%
Display working voltage AC46~54HZ,220V±15%/110V±15%
Color temperature 8500K-11500K
Gray scale/color 16.7M color
Input signal RF\ S-Video\ RGB etc
Mean free error time >10000
Life 100000
Lamp failure frequency <0.0001
IP rating The front IP65

0a2690a09838483ce22a442ebff3755 9ea3b990ddce5cb7153211c09cd99a0 27b1cdc6aa42d60e96d3d28d684b1da 922fe0ec15b9eb13faf49fad8b0b6c1 639905d4bdb4b32b3b54283a48df5c9 f071976e3f32a1d79777d45a2490a1a fd21242dbc6bf2fe10a9574a1bcd7d3

Packaging & Delivery

There are mainly three types of packing way:


Delivery way

1. By sea:Maritime transportation is a way of transporting goods between ports in different countries and regions by sea lanes, and it is the most important mode of transportation in international trade.


2. By air:Air transport has won a considerable market with its fast, safe, punctual and super-high efficiency, greatly shortening the delivery time, and greatly promoting the logistics supply chain to speed up the capital turnover and circulation.


3.By express: TNT/UPS/DHL/FEDEX,It is more convenient and quick,It is mainly used for transporting goods with small volume and light weight.


Shipping port:shenzhen /guangzhou/tianjin port.

Shipping term:EXW term、FOB term、CIF term

Payment types: T/T transfer,Weston union
