500*1000A aluminium alloy cabinet P3.91 P4.81 250*250 module

Short Description:

1.Size:500*1000*70mm

2.Weight: 7.2kg

3.Module: P2.976/P3.91/P4.81/P5.95/P6.25

4.Material: Aluminium alloy

5.Installation: Hoisting,Fixed installation,

6.Use of: Indoor/outdoor

7.Accessory: Fast locks,handles,system/power installation plate,connection piece

8.Cabinet color: Black,Blue,Red

9.Door color:Black,Blue,Red


Product Detail

Product Tags

Product information

Related products

PCB Board P2.976/P3.91/P4.81/P5.95/P6.25
Flight case 5pcs cabinet in one case,6pcs cabinet in one case
Hinging beam one beam holds 1 pcs cabinet,one beam holds 2 pcs cabinet
Power supply 200W-5v40a,300W-5v60a
Power and data connector 20A 3*2.5Nation standard



Feature of product



1.The assemble structure is convenient and easy

2.The appearance design is elegant and decent

3.Ultra-light,Ultra-thin

4.High precision and flatness,it is through CNC machining,the flatness tolerance of 0.03mm

5.High strength,durability,great heat dissipation

6.High universality,can be processed according to module drawing,used for outdoor and indoor

7.It is through salt &fog testing for 48 hours

8.The adhesive force of surface reaches the professional standard

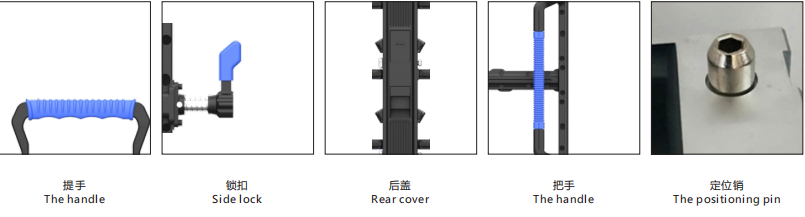

Cabinet details

 cabinet-details-500x1000-C

Cabinet accessory

cabinet-accessory-500x1000-A



Product P3.91 P4.81
Pitch(mm) 3.91 4.81
Density(pixels/m2) 65536 43264
LED Type SMD1921 SMD1921
Brightness(nits) 5000 5500
Scan Method 1/16 1/13
Cabinet Size(mm)

500*1000*75

Cabinet Material

Die casting Aluminum

Cabinet Weight

8kg

Protection Level

IP65

Cabinet Maintenance

Rear Service

Max Power Consumption

800w/m2

Average Power Consumption

270w/m2

Refresh Rate

1920-3840HZ

Grey Scale

16 bit

Viewing Angle

H140o,V140o

Voltage

AC100~240V(50-63Hz)

Working Temperature

-30℃ - + 65℃

Working Humidity

10% — 90%RH

Color Temperature

6500-9500K

7e4d596809a62e2a6eea0ac67294c96 c0e78fdcdffcf7fc2b8ab20c6d4e045 fab8532ff8cf6fa044a7a4ac149ce94 f204318624bcc408f784daff36d8da4



Packaging & Delivery

There are mainly three types of packing way:

20210817144141

Delivery way

1. By sea:Maritime transportation is a way of transporting goods between ports in different countries and regions by sea lanes, and it is the most important mode of transportation in international trade.

sea

2. By air:Air transport has won a considerable market with its fast, safe, punctual and super-high efficiency, greatly shortening the delivery time, and greatly promoting the logistics supply chain to speed up the capital turnover and circulation.

air

3.By express: TNT/UPS/DHL/FEDEX,It is more convenient and quick,It is mainly used for transporting goods with small volume and light weight.

interExpress

Shipping port:shenzhen /guangzhou/tianjin port.

Shipping term:EXW term、FOB term、CIF term

Payment types: T/T transfer,Weston union
