768*768-B magnesium alloy P4 P8 LED display cabinet

Short Description:

1.Size:768*768*80mm

2.Weight:8.75kg

3.Module: P2/P4/P8/P16

4.Material: Magnesium alloy die case

5.Installation: Hoisting,Fixed installation,rental

6.Use of: Indoor and outdoor

7.Accessory: Fast locks,system/power installation plate,connection piece

8.Door color:Black,silvery,blue

9.IP level:indoor IP30、outdoor IP65

10.Module size:256*128mm256*256mm


Product Detail

Product Tags

Product information

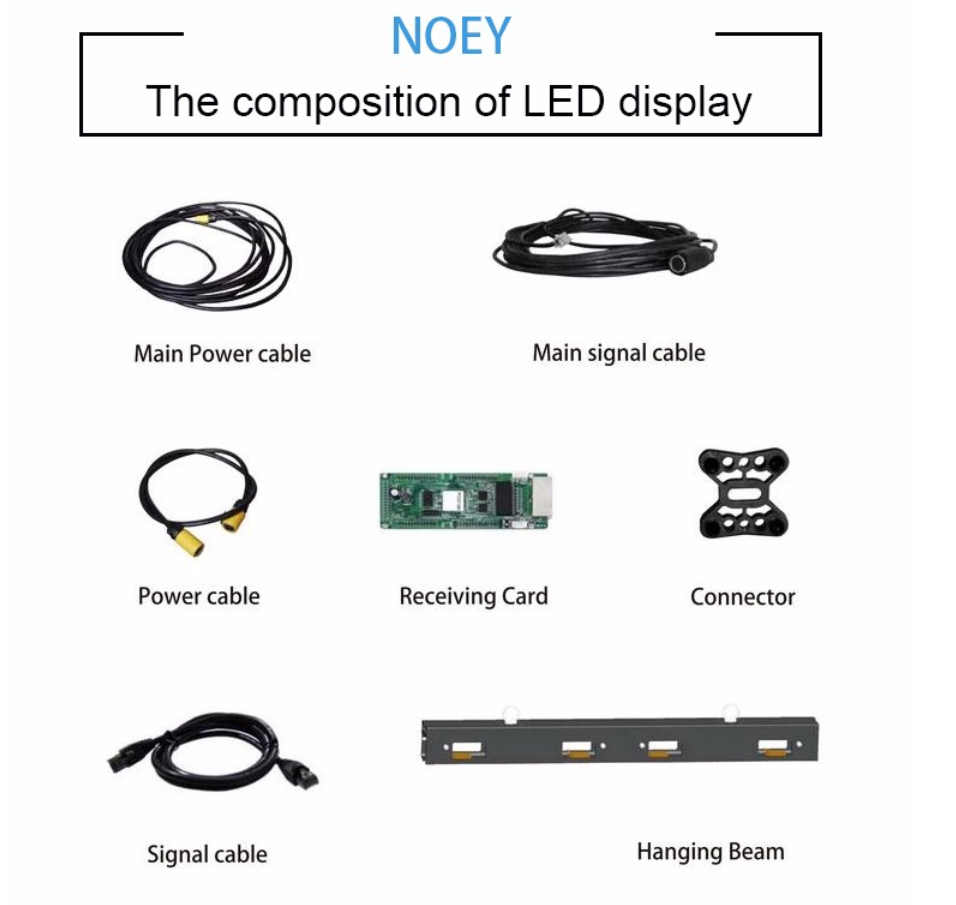

Related products

PCB Board P2/P4/P8/P16
Flight case 4pcs cabinet in one case,5pcs cabinet in one case
Hinging beam one beam holds 1 pcs cabinet
Power supply 300W-5v60a
Power and data connector 20A 3*2.5Nation standard
Fans 220V/5V , fans size :85*85*25mm



Feature of product



1.Fast cooling—excellent heat dissipation performance to protect the modular circuit

2.Fast cooling—good heat dissipation performance,effectively protecting the module circuit

3.Ultra-light,Ultra-thin

4.High precision and flatness,it is through CNC machining,the flatness tolerance of 0.03mm

5.High strength,durability,great heat dissipation

6.High universality,can be processed according to module drawing,used for outdoor and indoor

7.Easy installation—Installation takes only 20 seconds

8.The adhesive force of surface reaches the professional standard



Specification

Module Parameter
Item Parameter
Model number P4-16S
Module size 254x128mm
Pixel pitch 4mm
Pixel density 62500dots/m2
Pixel configuration 1R 1G 1B
Package mode SMD3528
Pixel resolution 64×32 dots
Max Power 23W
Module thickness 12-14mm
Weight 0.4kg
Drive type constant drive
scan mode 1/16scan
Port type hub75
Brightness of white balance 2000cd/m2
Cabinet Parameter
Dimension 768mm*768mm
Monomer Module Number 18
Power supply 5V/60A*1pc
Thermal discharge Anto
Pixel per cabinet 192*192dots
Best viewing distance 7M~8M
Best viewing angle 160°(W)120°(H)
Temperature storage:-35℃~+85℃working:-20℃~+50℃
Relative humidity 10%~95%
Thickness 80mm
QTY/m2 about 19.5pcs

f9e284fb240e5e57d9c69bc84ff823a ab8b22f1d2762339c73a93e575a0400 3b3be3f4291959929905b63cdaa2c7b

Packaging & Delivery

2084d6a8bb1eae09148bd94eb80af7d

Delivery way

1. By sea:Maritime transportation is a way of transporting goods between ports in different countries and regions by sea lanes, and it is the most important mode of transportation in international trade.

sea

2. By air:Air transport has won a considerable market with its fast, safe, punctual and super-high efficiency, greatly shortening the delivery time, and greatly promoting the logistics supply chain to speed up the capital turnover and circulation.

air

3.By express: TNT/UPS/DHL/FEDEX,It is more convenient and quick,It is mainly used for transporting goods with small volume and light weight.

interExpress

Shipping port:shenzhen /guangzhou/tianjin port.

Shipping term:EXW term、FOB term、CIF term

Payment types: T/T transfer,Weston union
