IP65 waterproof LED display front service screen cabinet
What’s the specification for Outdoor LED Display
| Outdoor LED Display Specification | |||
| Model number | P6.67 | P8 | P10 |
| Pixel pitch | 6.67mm | 8mm | 10mm |
| Module resolution | 48*48dots | 40 *40dots | 32*32dots |
| Module size | 320x320mm | 320x320mm | 320x320mm |
| Pixel Density | 27777 dots/sqm | 15625dots/sqm | 10000dots/sqm |
| Brightness | ≥6500cd/sqm | ≥6500cd/sqm | ≥6500cd/sqm |
| Weight |
20(kg/sqm) |
||
| View angle |
140° |
||
| LED configuration |
1R1G1B(SMD3IN1) |
||
| Scanning | 1/6 | 1/6 | 1/2 |
| Warranty | 2 Years quality warranty | ||
| Grey Scale | 65536 level | ||
| Working voltage | 200~240 V(50HZ/1500V(AC RMS)/1min) | ||
| Life span | >100000 hours | ||
| Temperature Range | work:-10°C~+50°C;storage:-40°C~+85°C | ||
| Certification | CCC,ROHS,CE | ||
1.High brightness Contrast:4000:1, which is a very high level to ensure a vivid image of our LED display screen system
2. First-class LED chip to ensure the long lift-time and high brightness of our LED display screen system
3.Clear vivid image quality even in direct, full-on sunlight to ensure you attracts more audience
4.Long-term Brightness:More 7000-nit brightness(for outdoor full color)(2000 nits brightness for indoor full color)capacity throughout product lifetime of the LED display screen.
5.Easy Installation & Using: easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display screen system

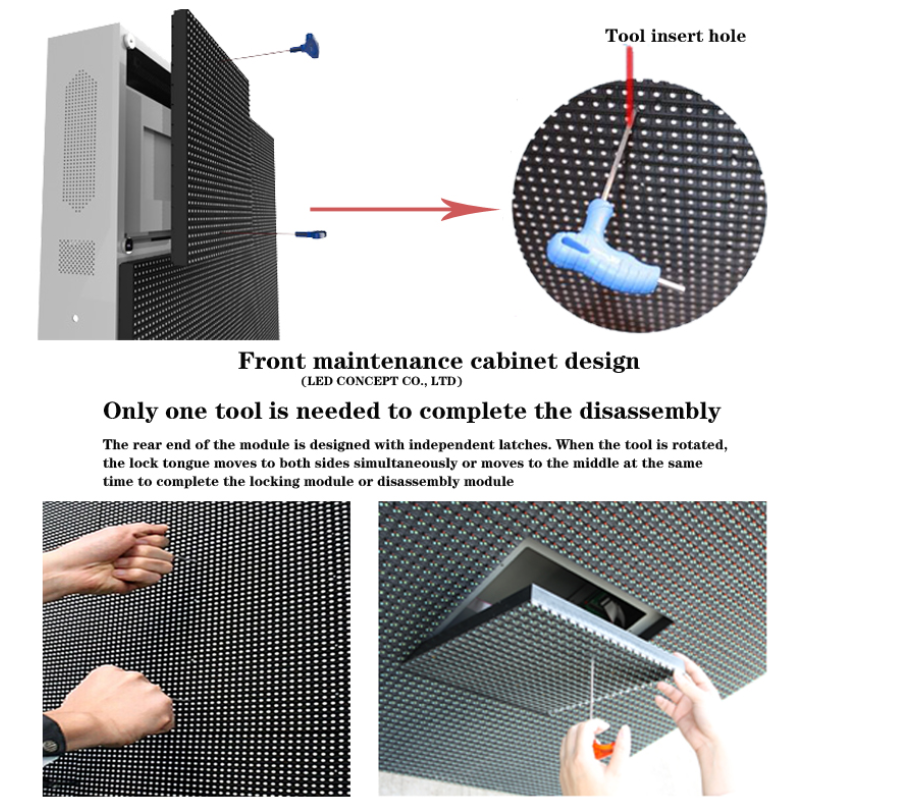

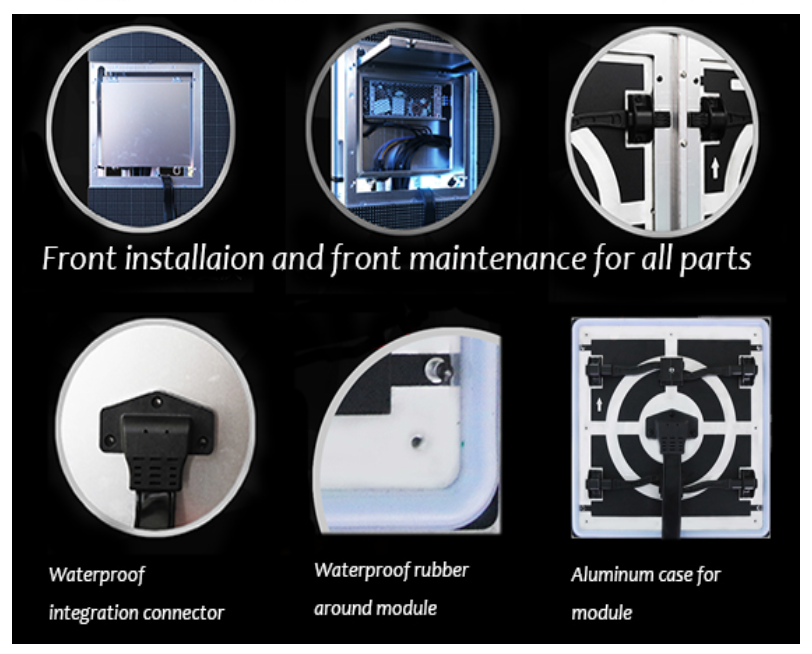

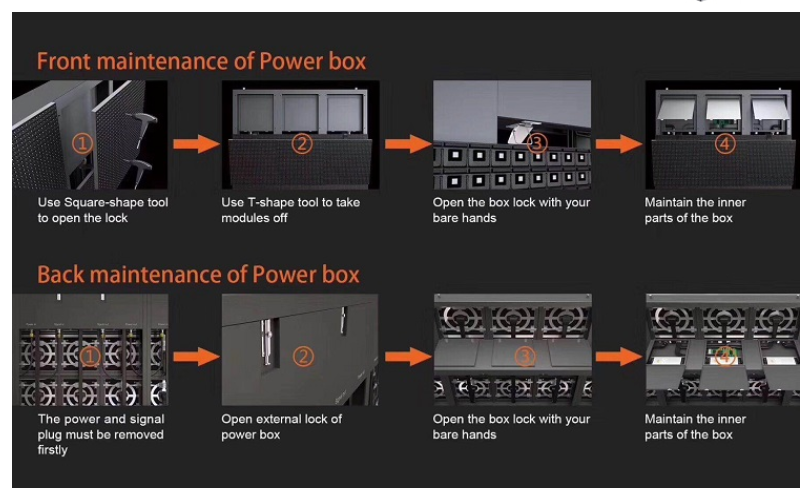

6.Convenient Servicing: Front and rear cabinet access make the maintance work very convenient and low cost
Packaging & Delivery
There are mainly three types of packing way:
Delivery way
1. By sea:Maritime transportation is a way of transporting goods between ports in different countries and regions by sea lanes, and it is the most important mode of transportation in international trade.
2. By air:Air transport has won a considerable market with its fast, safe, punctual and super-high efficiency, greatly shortening the delivery time, and greatly promoting the logistics supply chain to speed up the capital turnover and circulation.
3.By express: TNT/UPS/DHL/FEDEX,It is more convenient and quick,It is mainly used for transporting goods with small volume and light weight.
Shipping port:shenzhen /guangzhou/tianjin port.
Shipping term:EXW term、FOB term、CIF term
Payment types: T/T transfer，Weston union
