768*768-A aluminium alloy P3 P6 LED display cabinet

Short Description:

1.Size:768*768*69mm

2.Weight:9kg

3.Module: P3/P4.8/P6

4.Material: Aluminium alloy

5.Installation: Hoisting,Fixed installation,rental

6.Use of: Indoor and outdoor

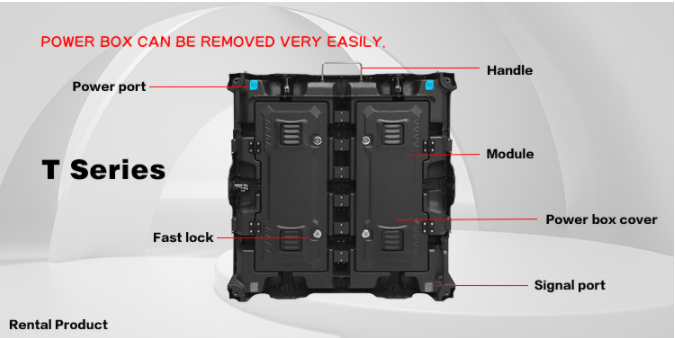

7.Accessory: Fast locks,system/power installation plate,connection piece

8.Door color:Black,silvery,blue

9.Module size:192*192mm


Product Detail

Product Tags

Product information

Related products

PCB Board P3/P4.8/P6
Flight case 4pcs cabinet in one case,5pcs cabinet in one case
Hinging beam one beam holds 1 pcs cabinet
Power supply 300W-5v60a
Power and data connector 20A 3*2.5Nation standard
Fans 220V/5V , fans size :85*85*25mm



Feature of product



1.The assemble structure is convenient and easy

2.The appearance design is elegant and decent

3.Ultra-light,Ultra-thin

4.High precision and flatness,it is through CNC machining,the flatness tolerance of 0.03mm

5.High strength,durability,great heat dissipation

6.High universality,can be processed according to module drawing,used for outdoor and indoor

7.It is through salt &fog testing for 48 hours

8.The adhesive force of surface reaches the professional standard



Specifications

Unit Module Specifications
Item

P3

P6

Pixel Pitch

3 mm

6 mm

Pixel Configuration

3in1 (1R1G1B)

Module Size(MM)

192*192

192*192

Cabinet size

768*768mm

768*768mm

Module Resolution(Dots)

64*64

32*32

Module Weight(Kg)

0.3

0.26

Package LED Mode

SMD2121

SMD3528

Max Power(Watt)

21

11.5

Pixel Density(Dots/SQM)

111’111

27’777

Driving Method

Constant Current Driving

Scan Method(Scan)

1/32

1/16

Interface Way

HUB 75

Brightness(CD/SQM)

1800

1800

Safety Standard

CCC,FCC,ROHS,TUV,CE,ETL,U,BIS…..

Unit Cabinet Specifications
Cabinet Size(MM)

Support Customized

Cabinet Composing(PCS)

Depending On The Size Of The Cabinet

Power Supply Mode(Per Cabinet)

5V60A

5V40A

Cabinet Resolution(Dots)

Depending On The Size Of The Cabinet

Optimal Viewing Distance(M)

3-300

6-600

Optimal Viewing Angle

Horizontal angle: 160 degree; Vertical angle: 140 degree

Environment Temperature

Storage: -40 degree ~ +85 degree; Work: -20 degree ~ +60 degree

Relative Humidity

10% ~ 95%

3b119cfa0697bac7158c5a51d528bd4 8a9163cf01bb8186847da9e364b637a 9bdf44fbcb18ee02c9ad8e7ca87d75b 9dec3e7c91244592b9535587649300b

Packaging & Delivery

There are mainly three types of packing way:

20210817144141

Delivery way

1. By sea:Maritime transportation is a way of transporting goods between ports in different countries and regions by sea lanes, and it is the most important mode of transportation in international trade.

sea

2. By air:Air transport has won a considerable market with its fast, safe, punctual and super-high efficiency, greatly shortening the delivery time, and greatly promoting the logistics supply chain to speed up the capital turnover and circulation.

air

3.By express: TNT/UPS/DHL/FEDEX,It is more convenient and quick,It is mainly used for transporting goods with small volume and light weight.

interExpress

Shipping port:shenzhen /guangzhou/tianjin port.

Shipping term:EXW term、FOB term、CIF term

Payment types: T/T transfer,Weston union
